Immobilizer Control Unit: Replacement

  1. Disconnect the negative (-) battery terminal.

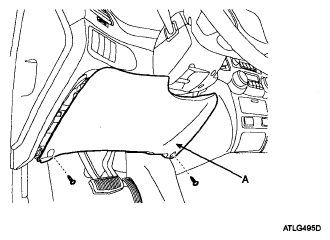

  2. Remove the driver lower crash pad panel (A).
    Fig 1: Identifying Driver Lower Crash Pad Panel
    G04806607Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the steering column cover. Refer to STEERING COLUMN AND SHAFT .

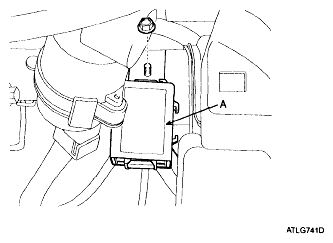

  4. Disconnect the 5P connector of the SMARTRA unit and then remove the SMARTRA unit (A) after loosening the nut.
    Fig 2: Locating SMARTRA Unit
    G04806688Courtesy of KIA MOTORS AMERICA, INC.
  5. Installation is the reverse of removal procedure.
