Function Of Safety Power Window: Notes

When driver door power window auto-up switch is operated, safety function is activated.

1. When a force of 100N is detected during window UP mode and the window is positioned between 4-250 mm from the top of the door, the window will automatically reverse travel to a distance of 300 mm from the top of the door.

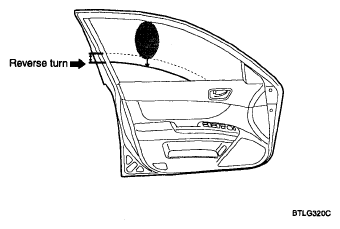

   Fig 1: Identifying Driver Door Power Window Auto-Up

   Courtesy of KIA MOTORS AMERICA, INC.
   • When an obstruction is detected, and the window is positioned over 250 mm from the top of the door, the window will automatically reverse travel to a distance of 20 mm from the detection point.

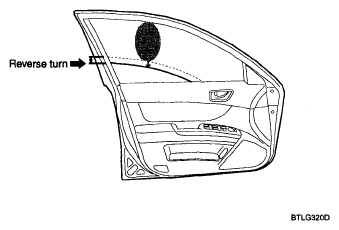

     Fig 2: Identifying Driver Door Power Window Distance Of 20mm From Detection Point

     Courtesy of KIA MOTORS AMERICA, INC.
2. When the auto-up switch is held in the UP position, and an obstruction is detected, the window will automatically reverse travel to a distance of 25mm from the detection point.

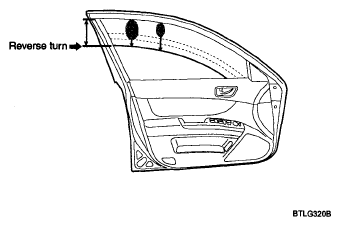

   Fig 3: Identifying Driver Door Power Window Distance Of 25mm From Detection Point

   Courtesy of KIA MOTORS AMERICA, INC.
3. The safety power window function is not available if the window is within 4mm from the top of the door.
