Power Window Relay: Inspection

Disconnect the negative (-) battery terminal.
Remove the junction box.
Check for continuity between the terminals.
There should be continuity between the No. 1 in the I/P-G connector and No. 12 terminal in the I/P-A connector when power and ground are connected to the No. 1 terminal in the I/P-G connector and No. 2 terminal in the I/P-A connector.
There should be no continuity between the No. 1 terminal in the I/P-G connector and No. 12 terminal in the I/P-A connector when power is disconnected.

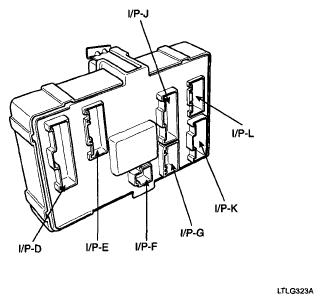

Fig 1: Identifying Power Window Relay Box
Courtesy of KIA MOTORS AMERICA, INC.

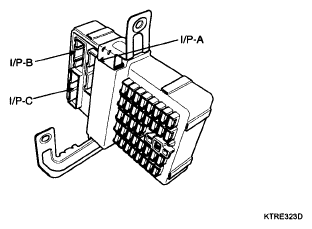

Fig 2: Identifying Junction Box
Courtesy of KIA MOTORS AMERICA, INC.

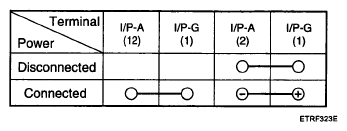

Fig 3: Testing Power Window Relay Box
Courtesy of KIA MOTORS AMERICA, INC.
