Power Window Main Switch Inspection

Disconnect the negative (-) battery terminal.
Remove the front door trim panel. Refer to FRONT DOOR .
Disconnect the 14P connector from the switch.

Fig 1: Identifying Rear Power Window Motor 14P Connector Terminals
Courtesy of KIA MOTORS AMERICA, INC.
Check for continuity between the terminals in each switch position. See Fig 2 or Fig 3 . If the continuity condition is not normal, replace the switch.

Fig 2: Testing Rear Power Window Motor
Courtesy of KIA MOTORS AMERICA, INC.

POWER WINDOW LOCK SWITCH

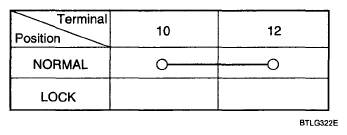

Fig 3: Testing Power Window Lock Switch
Courtesy of KIA MOTORS AMERICA, INC.
