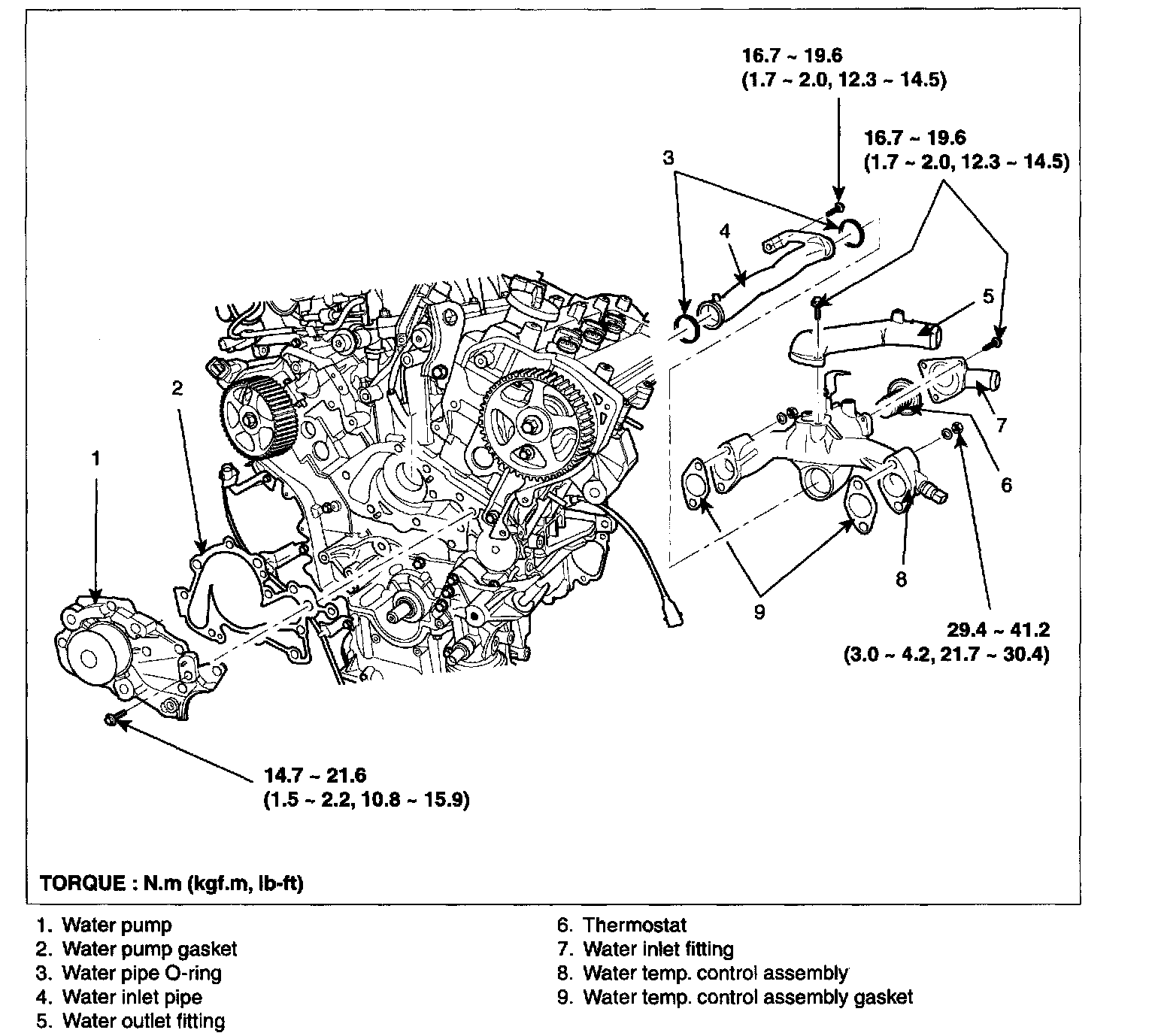

Water Pump





Water Pump

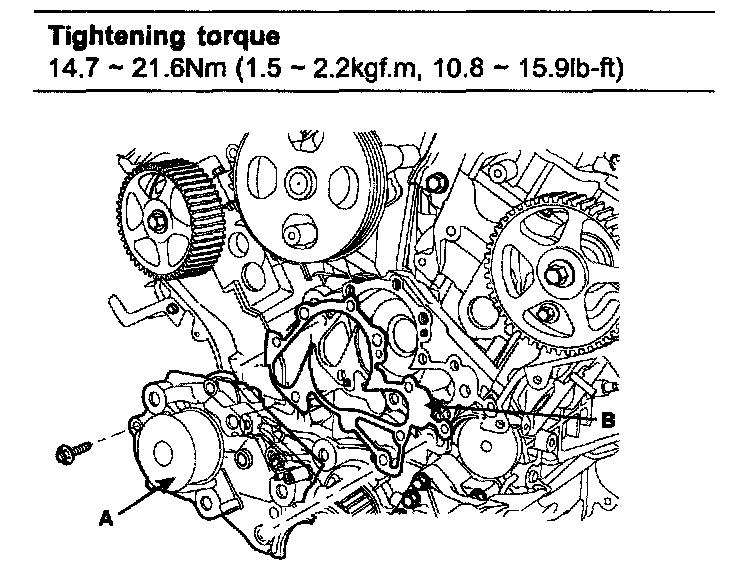

Install the water pump (A) and a new gasket (B) with the bolts.

NOTE:
Clean the contacting face before assembling.
Do not reuse the water pump gasket disassembled.
