Fuel Injector: Inspection

  1. Measure resistance between the terminal 1 and 2 of the injector.

    Injector Resistance: 13.8-15.2 Ω at 20°C (68°F)

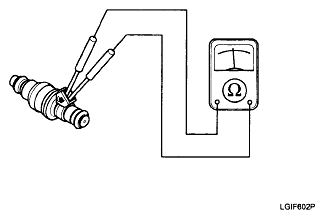

    Fig 1: Measuring Resistance Between Injector Terminals 1 And 2
    G04862382Courtesy of KIA MOTORS AMERICA, INC.
  2. If the resistance is not within specification, replace the injector.
