Components (I)

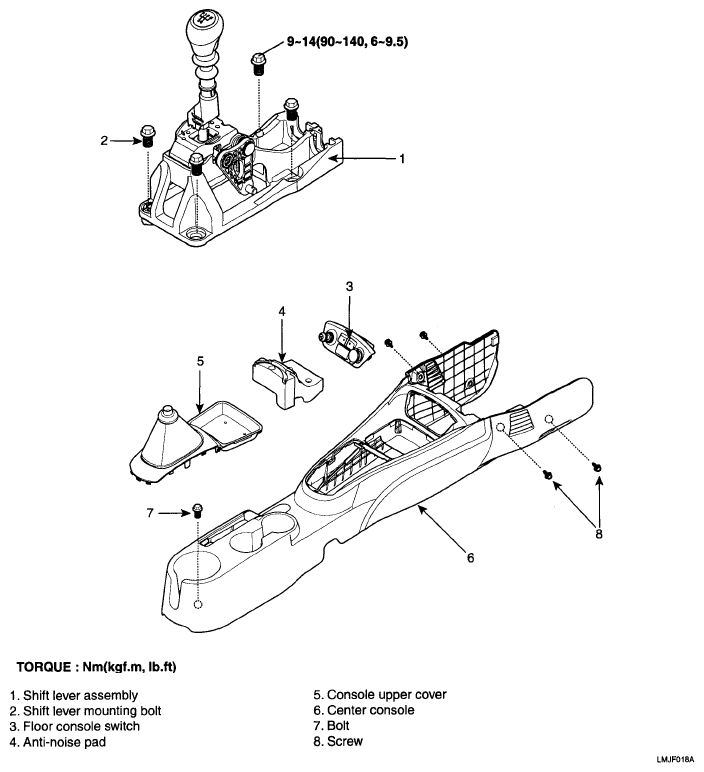

Fig 1: Manual Transaxle Shift Control Replacement Components With Torque Specifications
G04862467Courtesy of KIA MOTORS AMERICA, INC.
