Manual Transaxle Shift Control System: Disassembly

Disassemble the shift lever knob (A) from the shift lever shaft (B).

Fig 1: Identifying Shift Lever Knob From Shift Lever Shaft
Courtesy of KIA MOTORS AMERICA, INC.

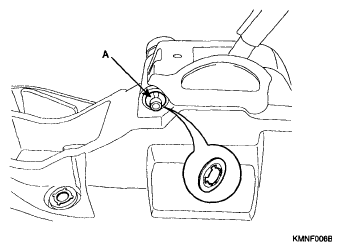

Disassemble the push nut (A) from the shift lever bracket. And then disassemble the shift lever shaft and select lever.

Fig 2: Identifying Shift Lever Bracket Nut
Courtesy of KIA MOTORS AMERICA, INC.
