Manual Transaxle Shift Control System: Removal

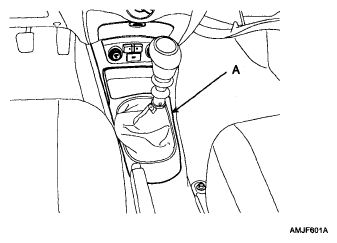

Remove the center console (A). See CONSOLE .

Fig 1: Identifying Center Console
Courtesy of KIA MOTORS AMERICA, INC.

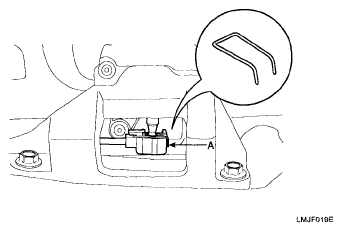

Remove the select cable snap pin (A).

Fig 2: Identifying Select Cable Snap Pin
Courtesy of KIA MOTORS AMERICA, INC.

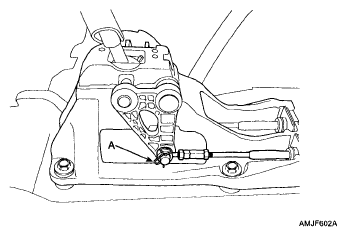

Remove the shift cable clip (A).

Fig 3: Identifying Shift Cable Clip
Courtesy of KIA MOTORS AMERICA, INC.

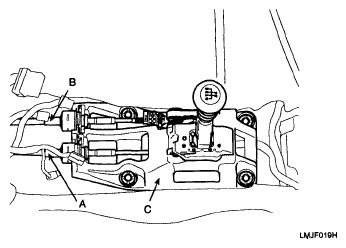

Remove the shift cable (A) and select cable (B).
Remove the shift lever assembly (C).

Fig 4: Identifying Shift Cable And Select Cable
Courtesy of KIA MOTORS AMERICA, INC.

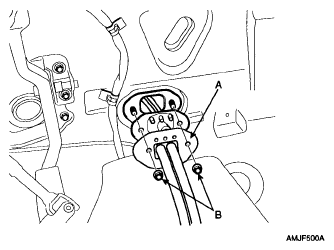

Remove the retainer (A) and nuts (B).

Fig 5: Identifying Retainer And Nuts
Courtesy of KIA MOTORS AMERICA, INC.
Remove the snap pins (2 each) (Transaxle side).

Fig 6: Identifying Snap Pins
Courtesy of KIA MOTORS AMERICA, INC.
Remove the shift cable and select cable.
