Throttle Position Sensor





SPECIFICATIONS

SENSORS

THROTTLE POSITION SENSOR (TPS)
- Type: Variable resistor type

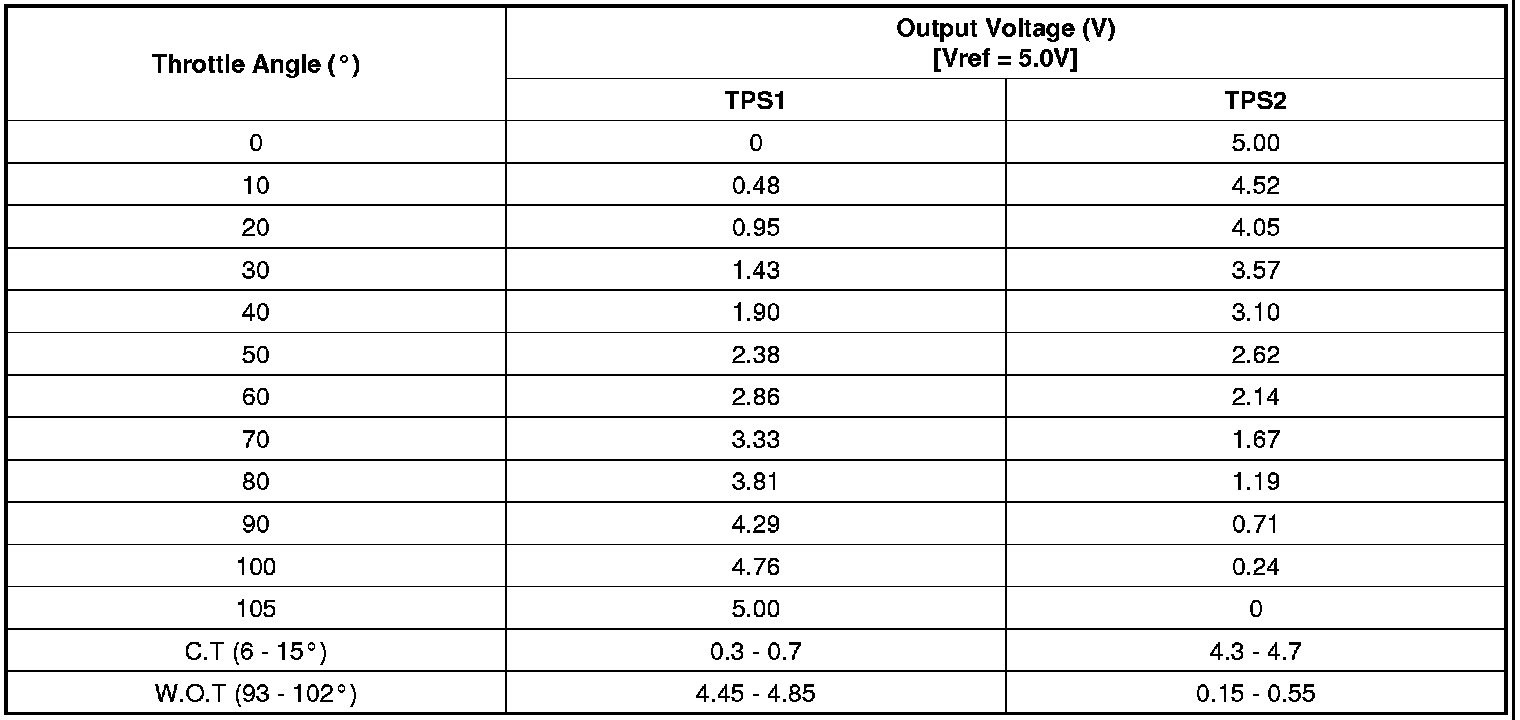

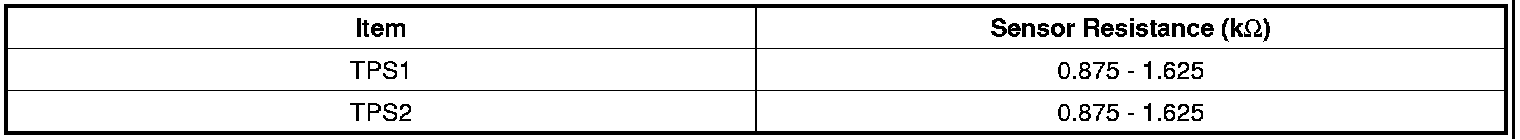

- Specification
