Air Flow Meter/Sensor





Specifications

SENSORS

MASS AIR FLOW SENSOR (MAFS)

- Type: Hot-film type

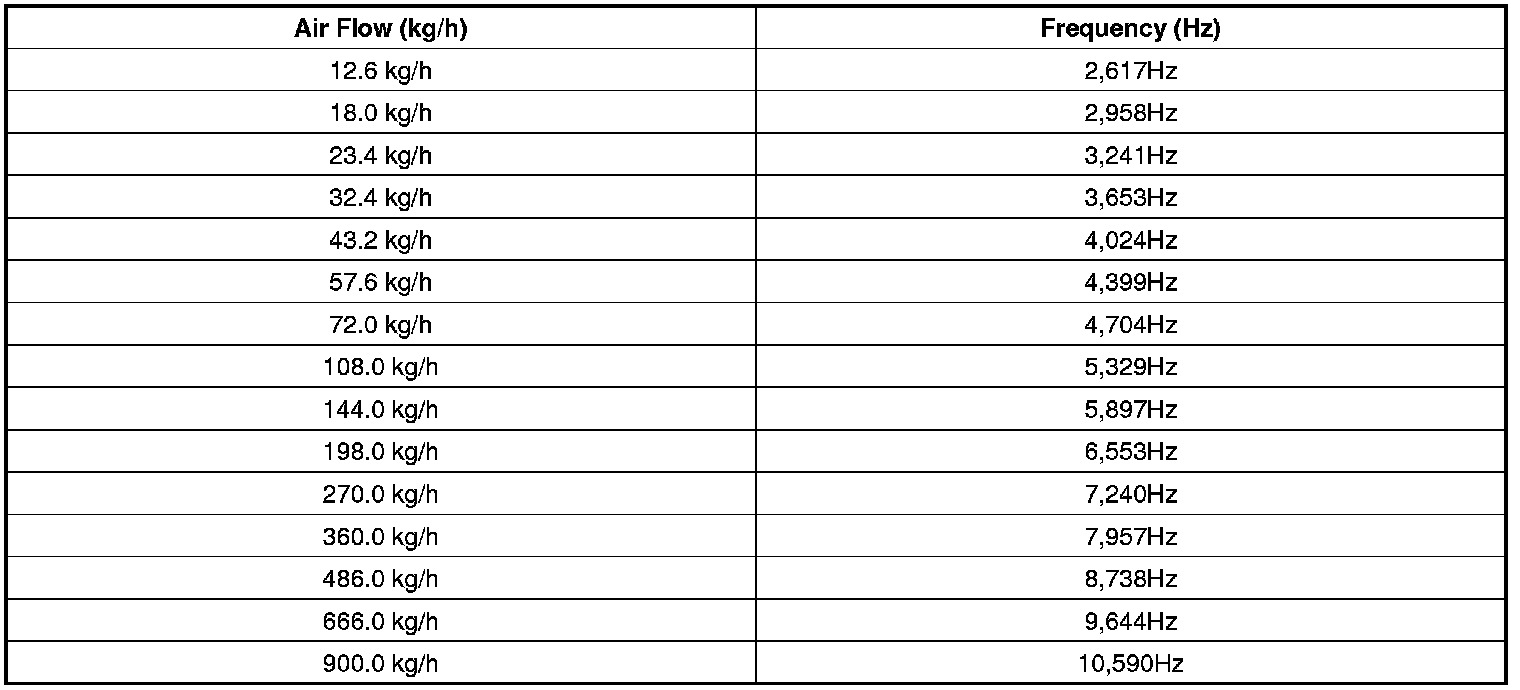

- Specification
