Throttle Position Sensor





SPECIFICATION

SENSORS

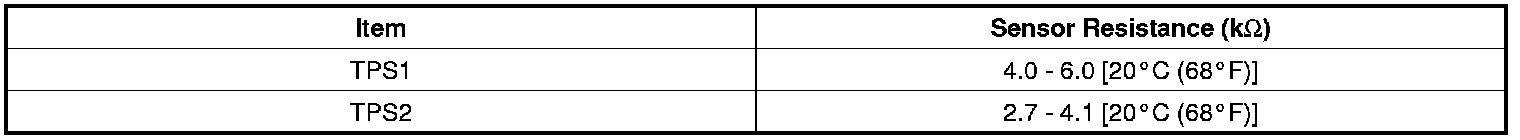

THROTTLE POSITION SENSOR (TPS)

- Type: Variable resistor type

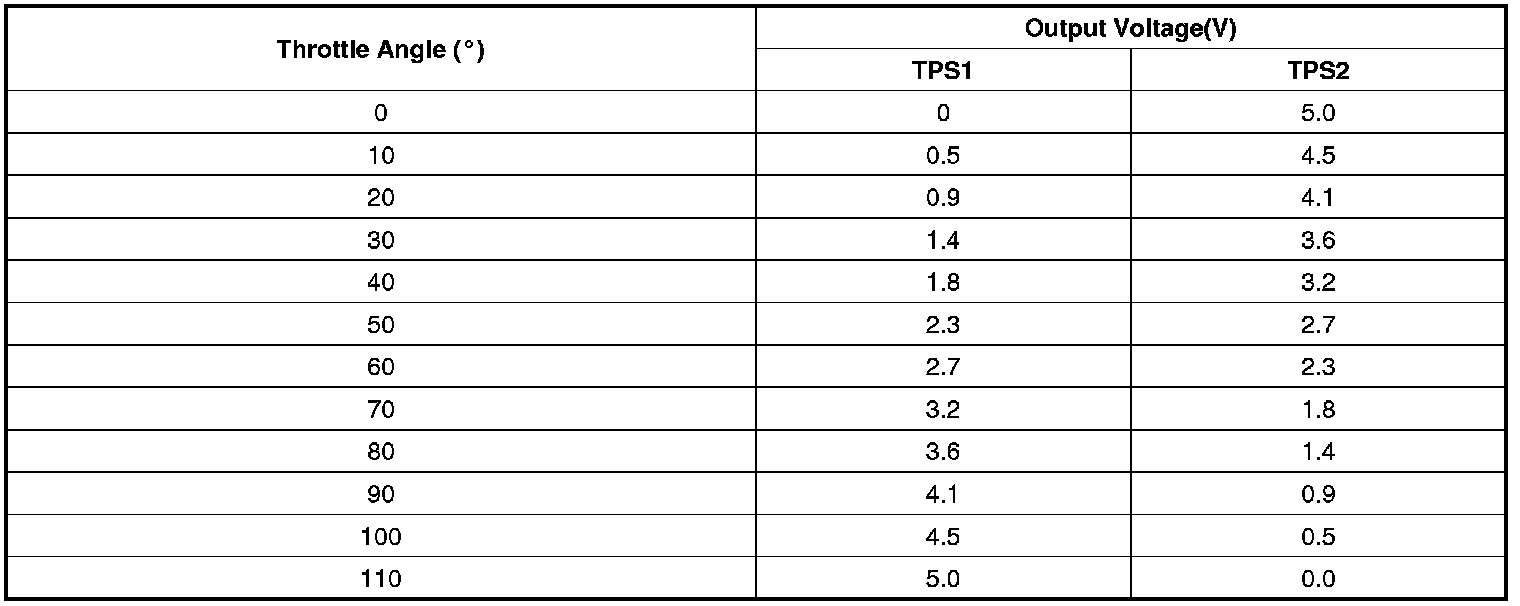

- Specification (When reference voltage = 5.0V)
