Schematic Diagram

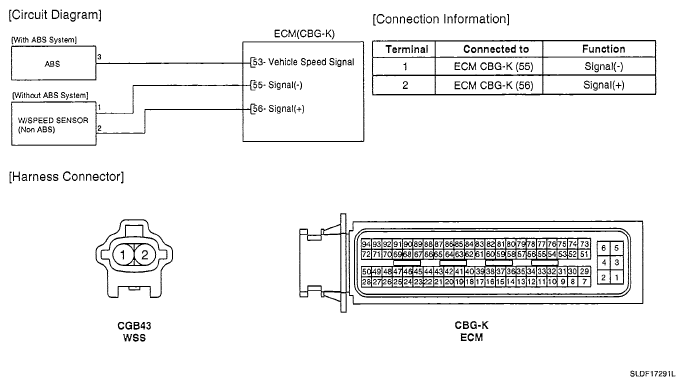

Fig 1: Vehicle Speed Sensor Schematic Diagram
Courtesy of KIA MOTORS AMERICA, INC.
