HECU Connector Input/Output Specification (Abs & TCS)

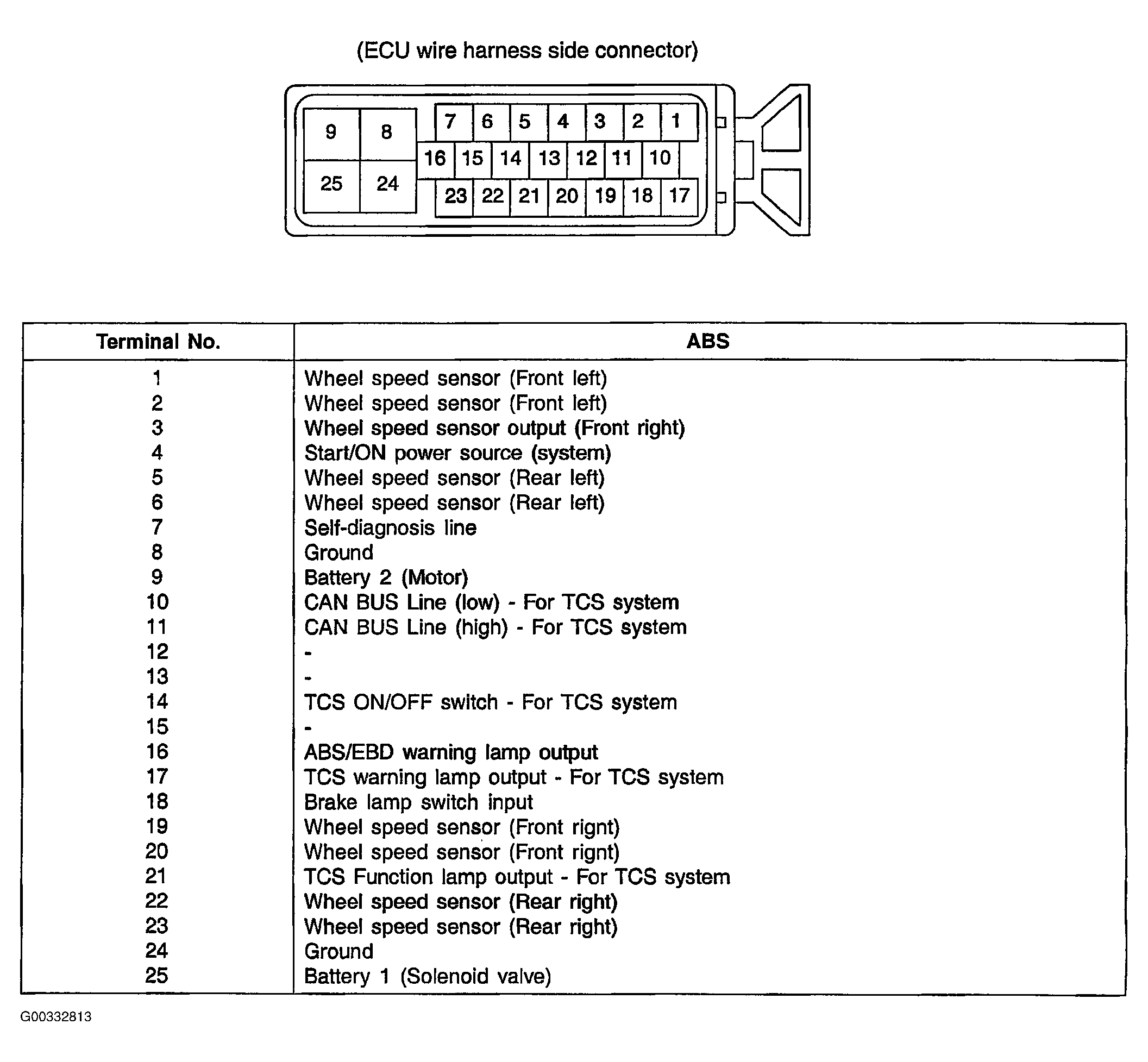

Fig 1: HECU Connector Pinout
Courtesy of KIA MOTORS AMERICA, INC.

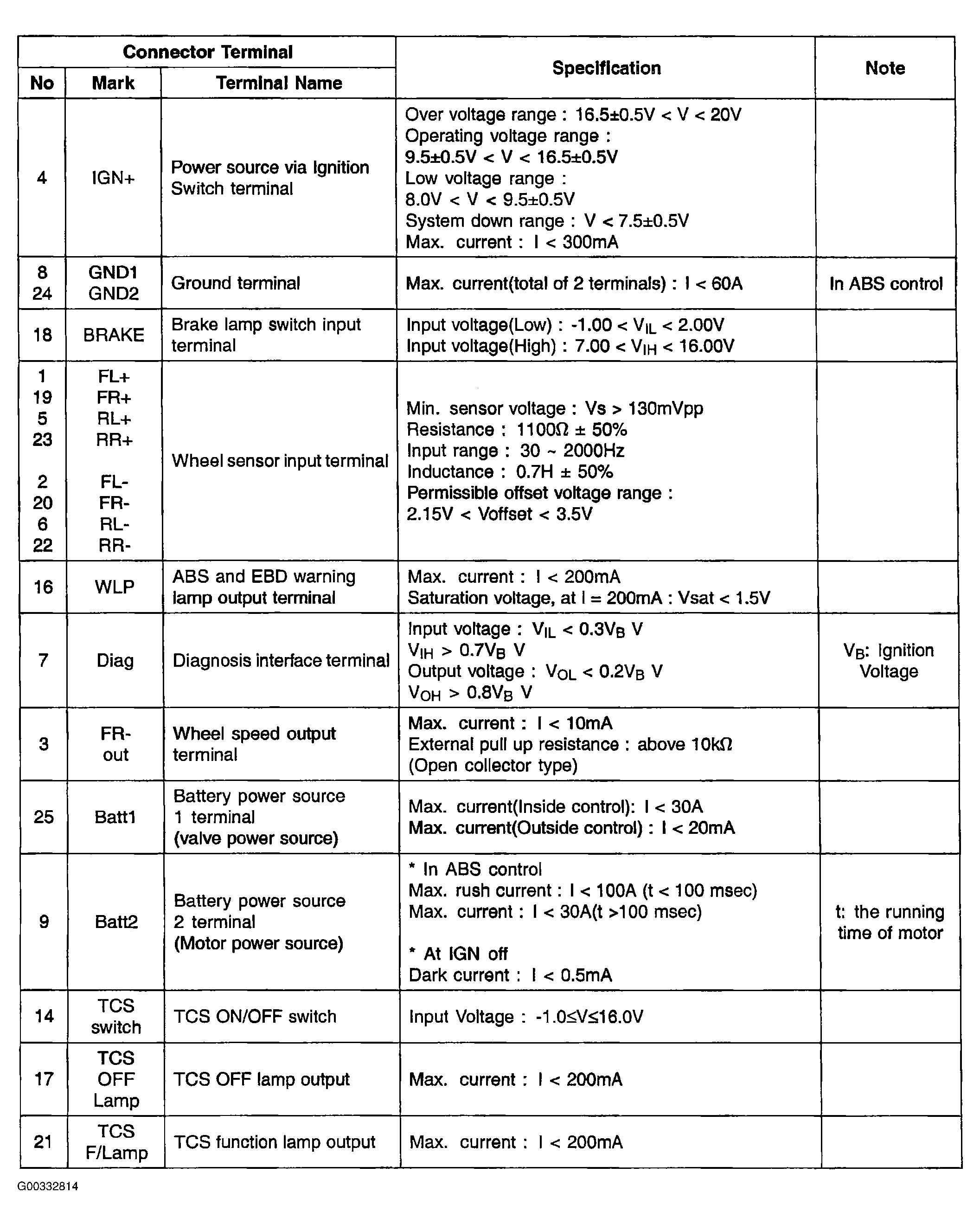

Fig 2: HECU Terminal Specifications
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
