Component Inspection

Check APS

Ignition "ON" & ENG "OFF".

Measure waveform of APS by pressing and depressing accelerator pedal with scan tool.

SPECIFICATION :

OUTPUT VOLTAGE SPECIFICATION

Pedal Position	Output Voltage (V) [Vref = 5.0V]
Pedal Position	APS1	APS2
C.T	0.7 ~ 0.8V	0.275 ~ 0.475V
W.O.T	3.8 ~ 4.4V	1.75 ~ 2.35V

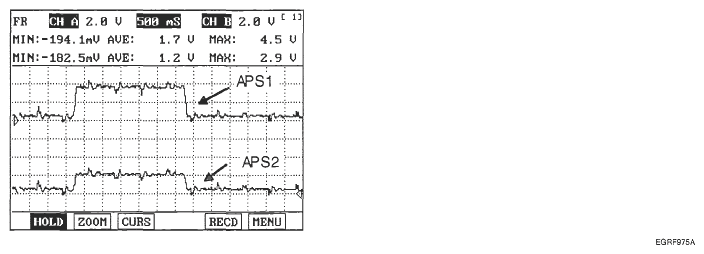

Fig 1: Identifying Signal Waveform

G05301684

Courtesy of KIA MOTORS AMERICA, INC.

Is the measured signal waveform O.K ?
YES
- Substitute with a known-good PCM and check for proper operation. If the problem is corrected, replace PCM and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NOTE: There is a memory reset function on scan tool that can erase optional parts automatically detected and memorized by PCM.
Before or after testing PCM on the vehicle, use this function before reusing the PCM

NO
- Substitute with a known-good APS and check for proper operation. If the problem is corrected, replace APS and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
