Components (2)

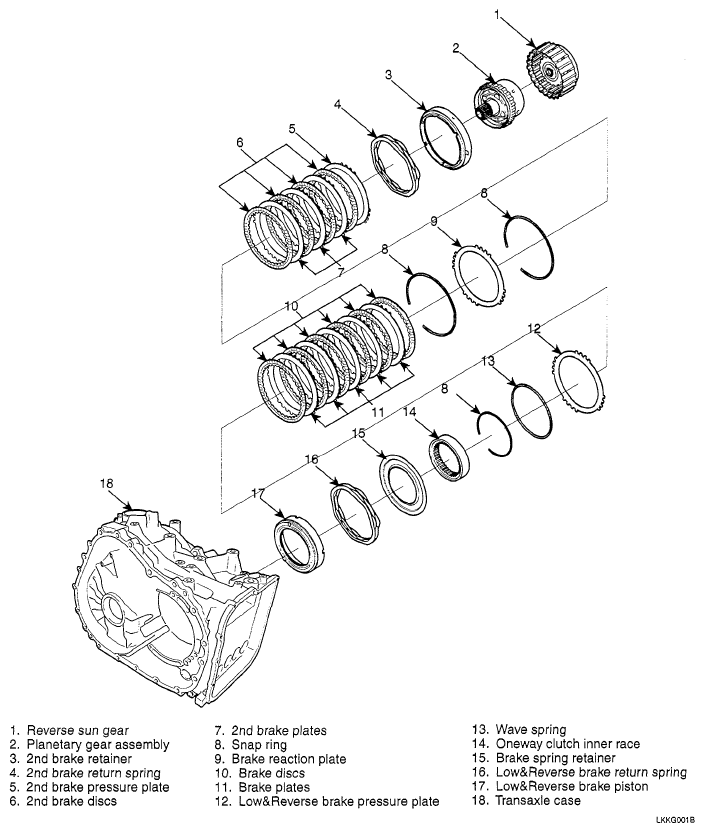

Fig 1: Identifying Automatic Transaxle Components (2 Of 2)

G05116765

Courtesy of KIA MOTORS AMERICA, INC.
