Engine Control Module





ECM Terminal And Input / Output signal

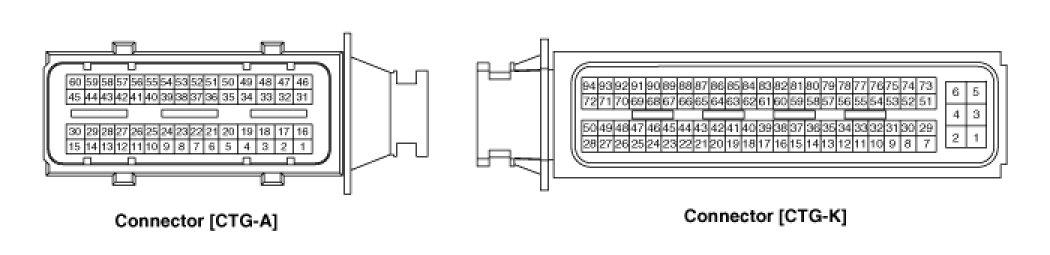

ECM Harness Connector

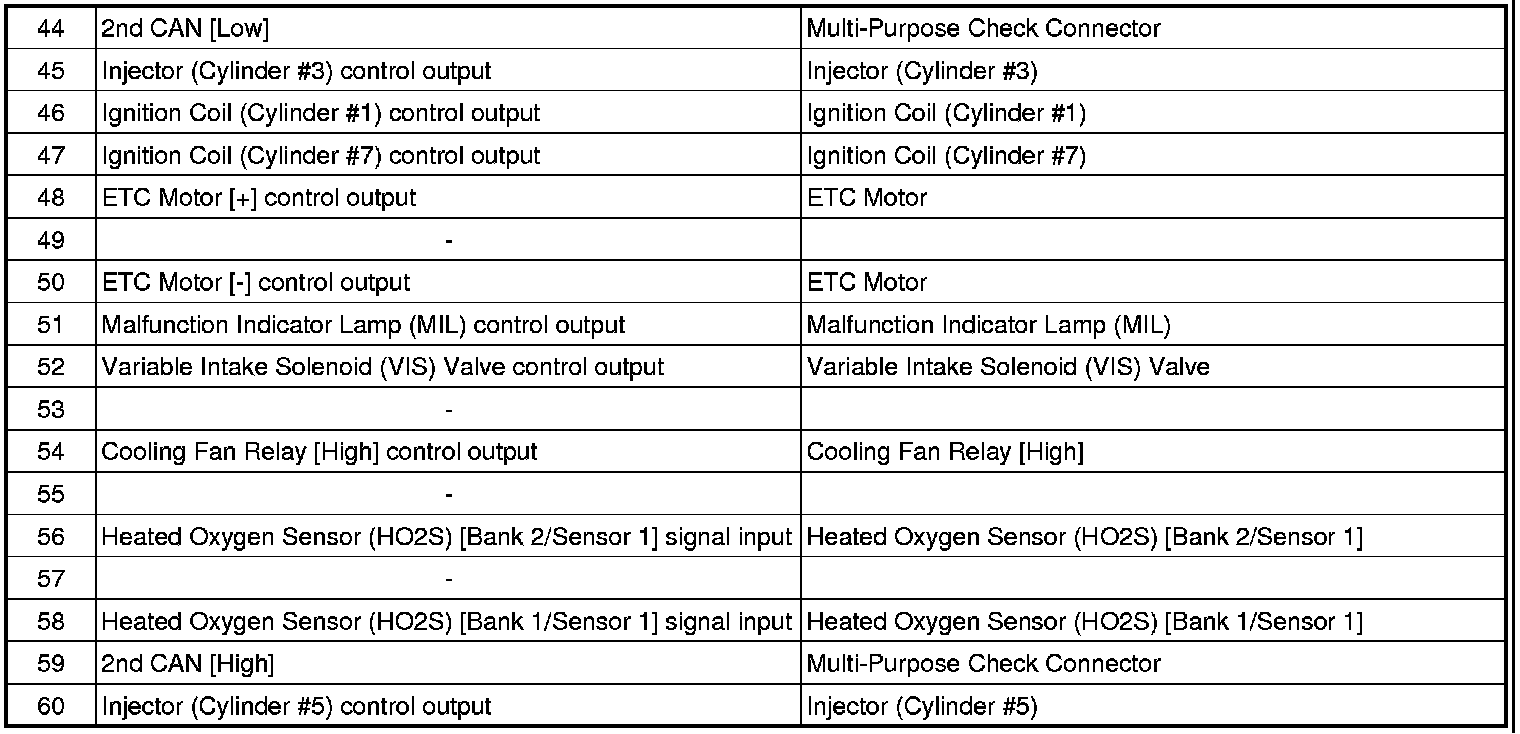

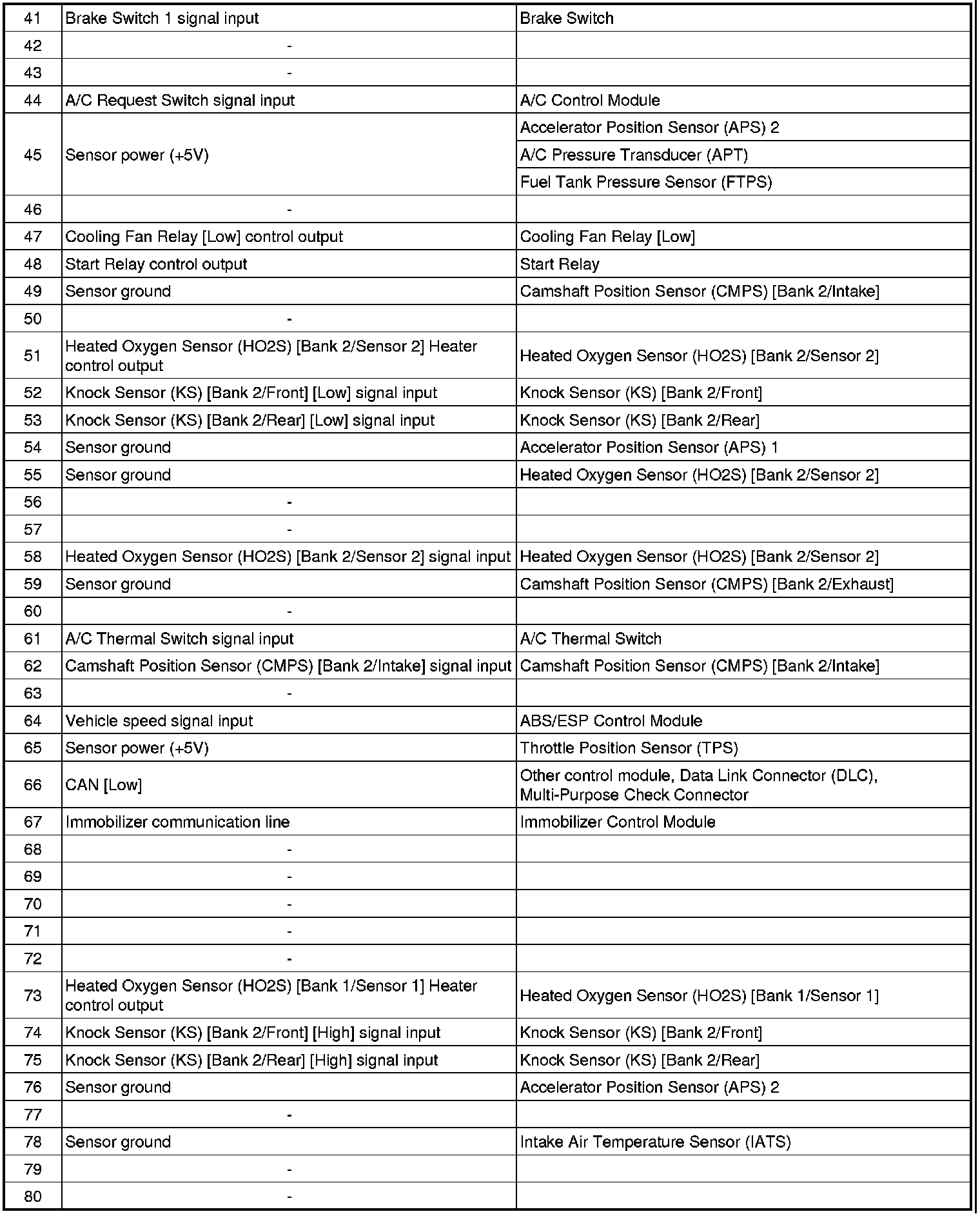

ECM Terminal Function

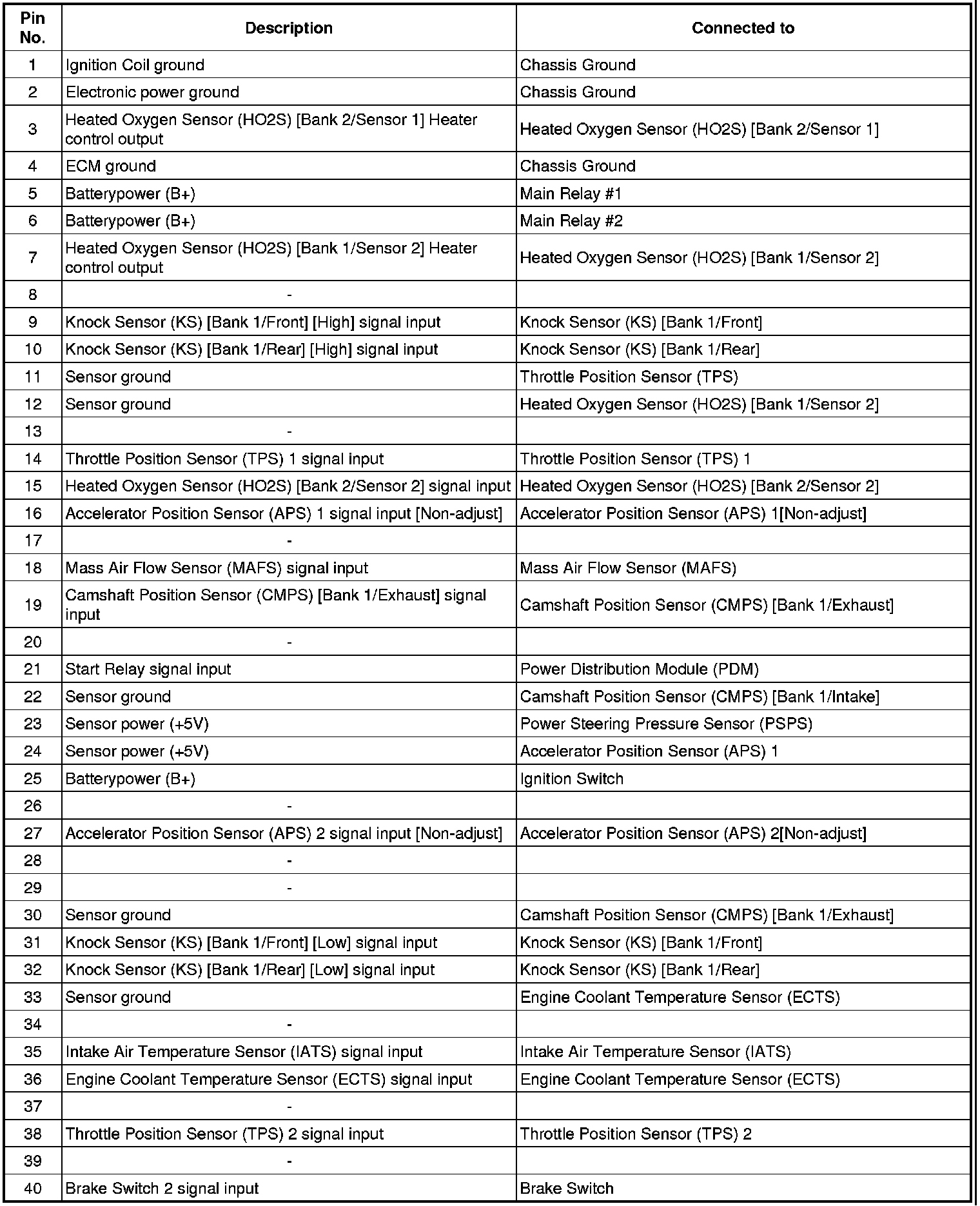

Connector [ CTG-A ]

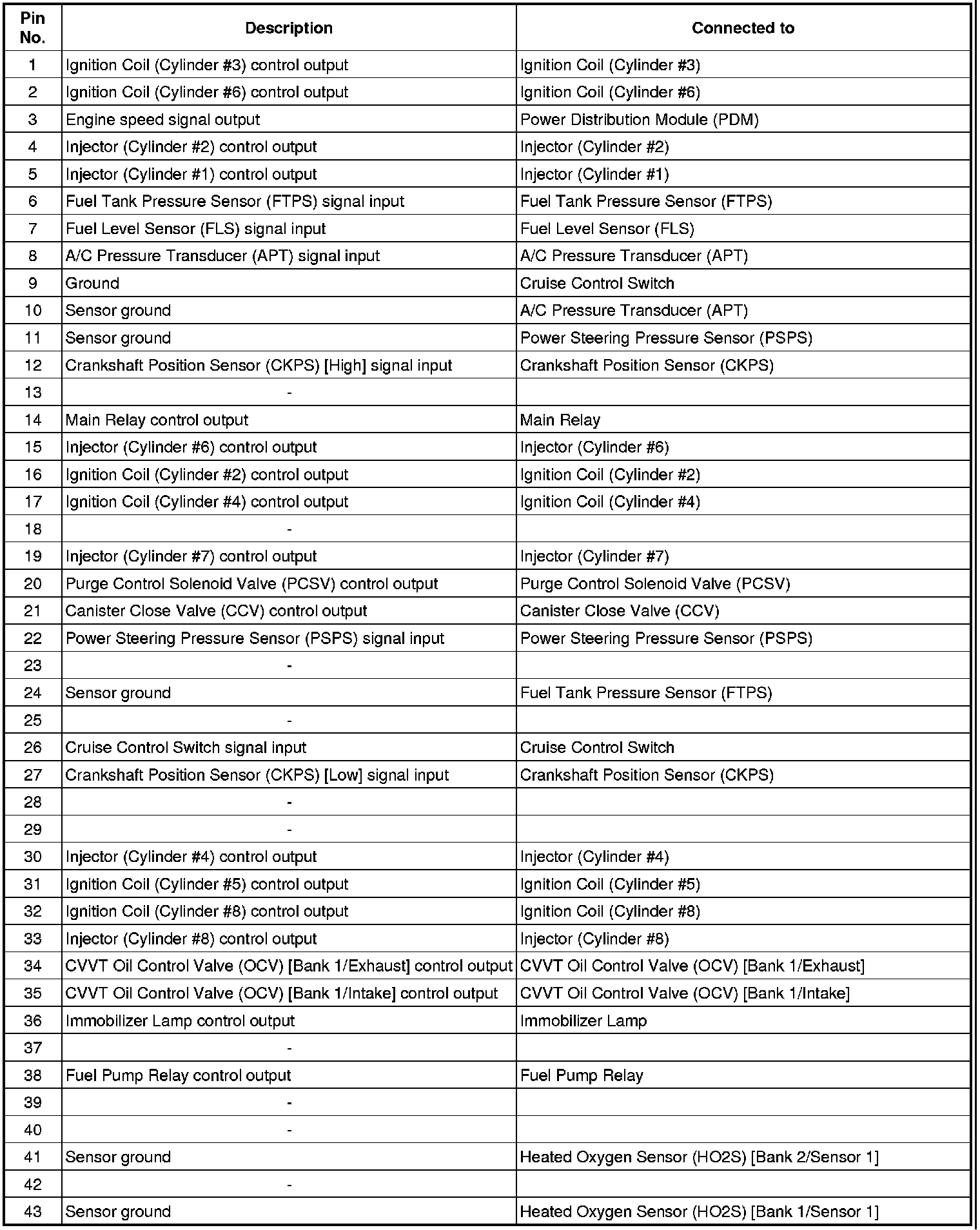

Connector [ CTG-K ]

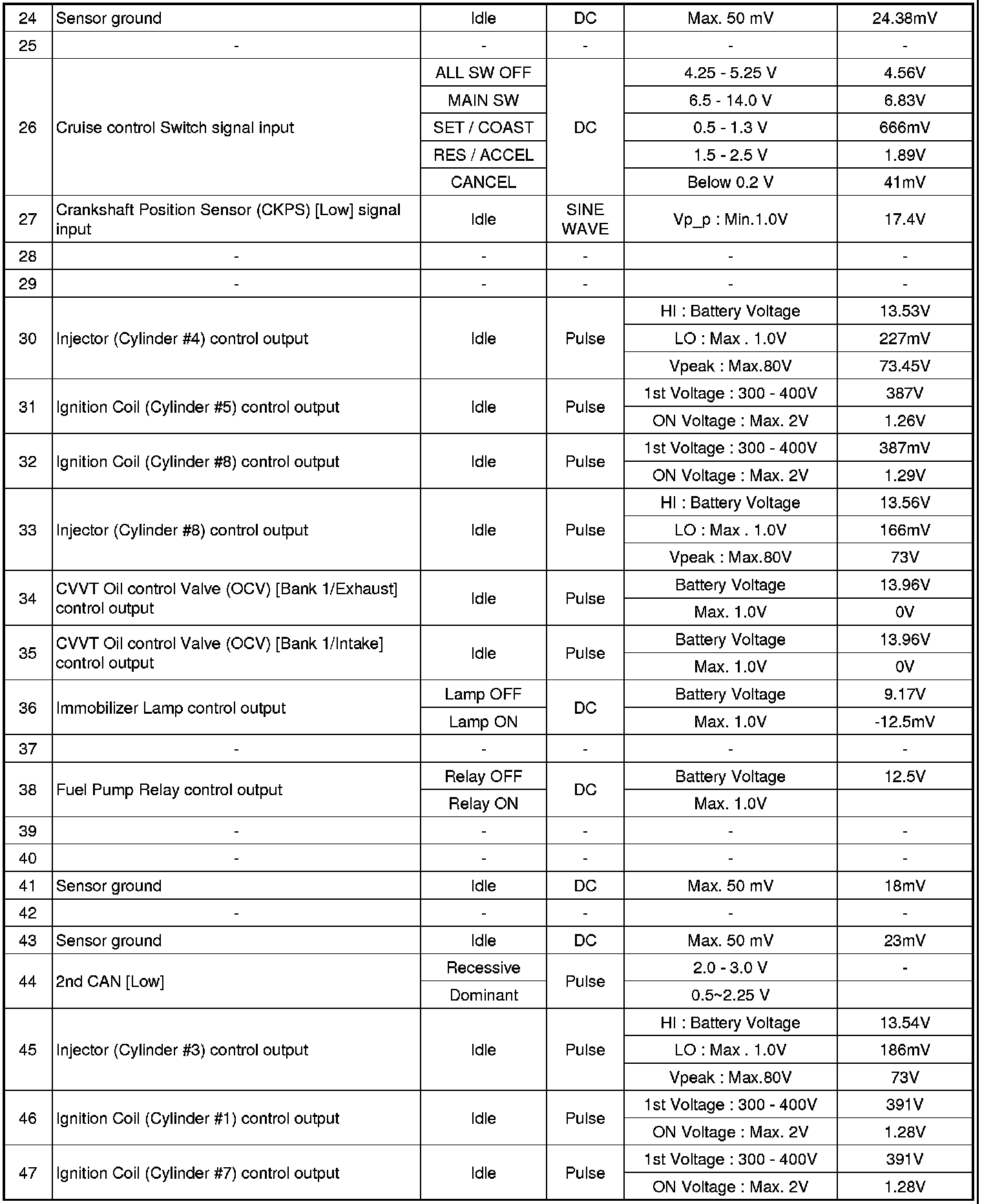

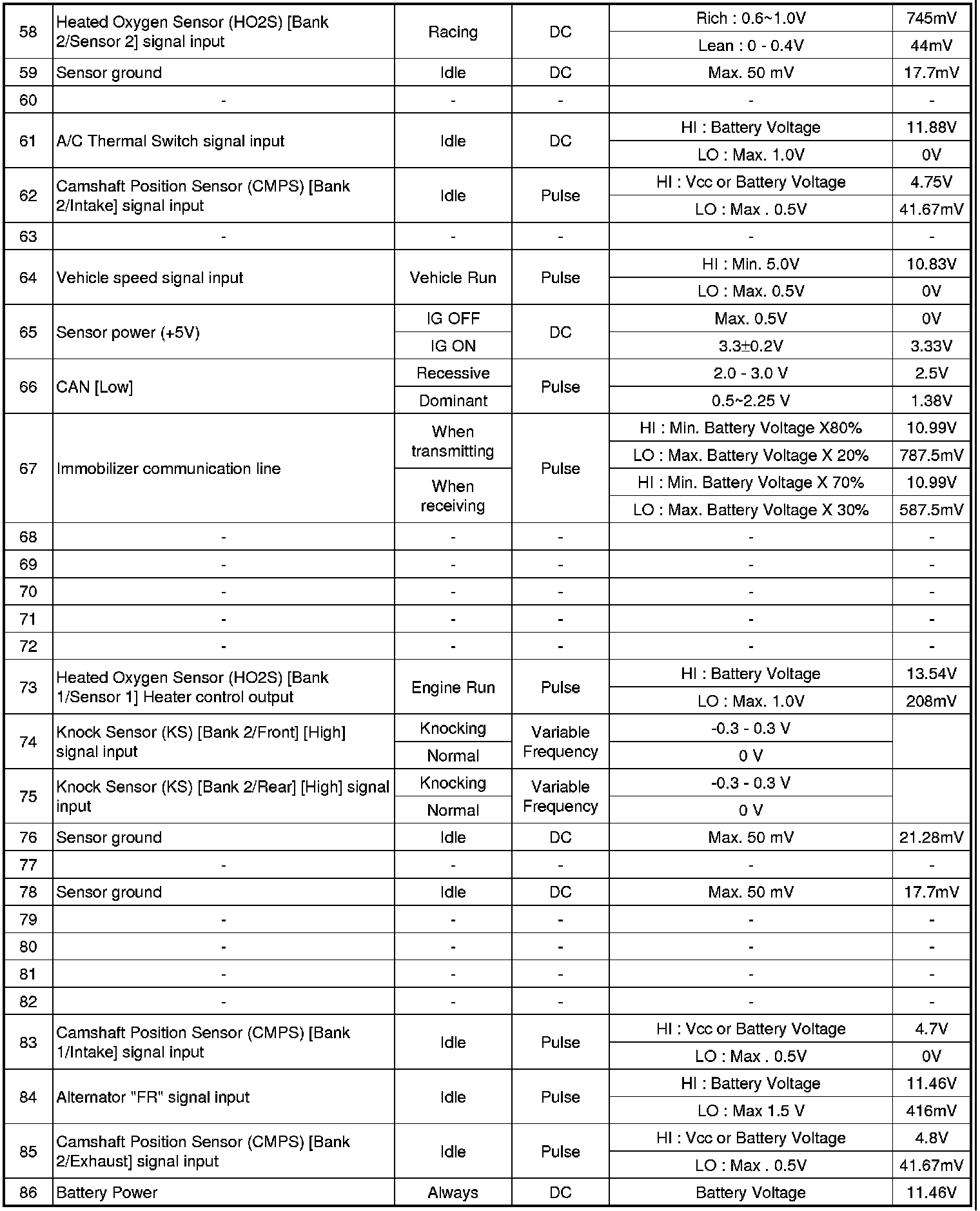

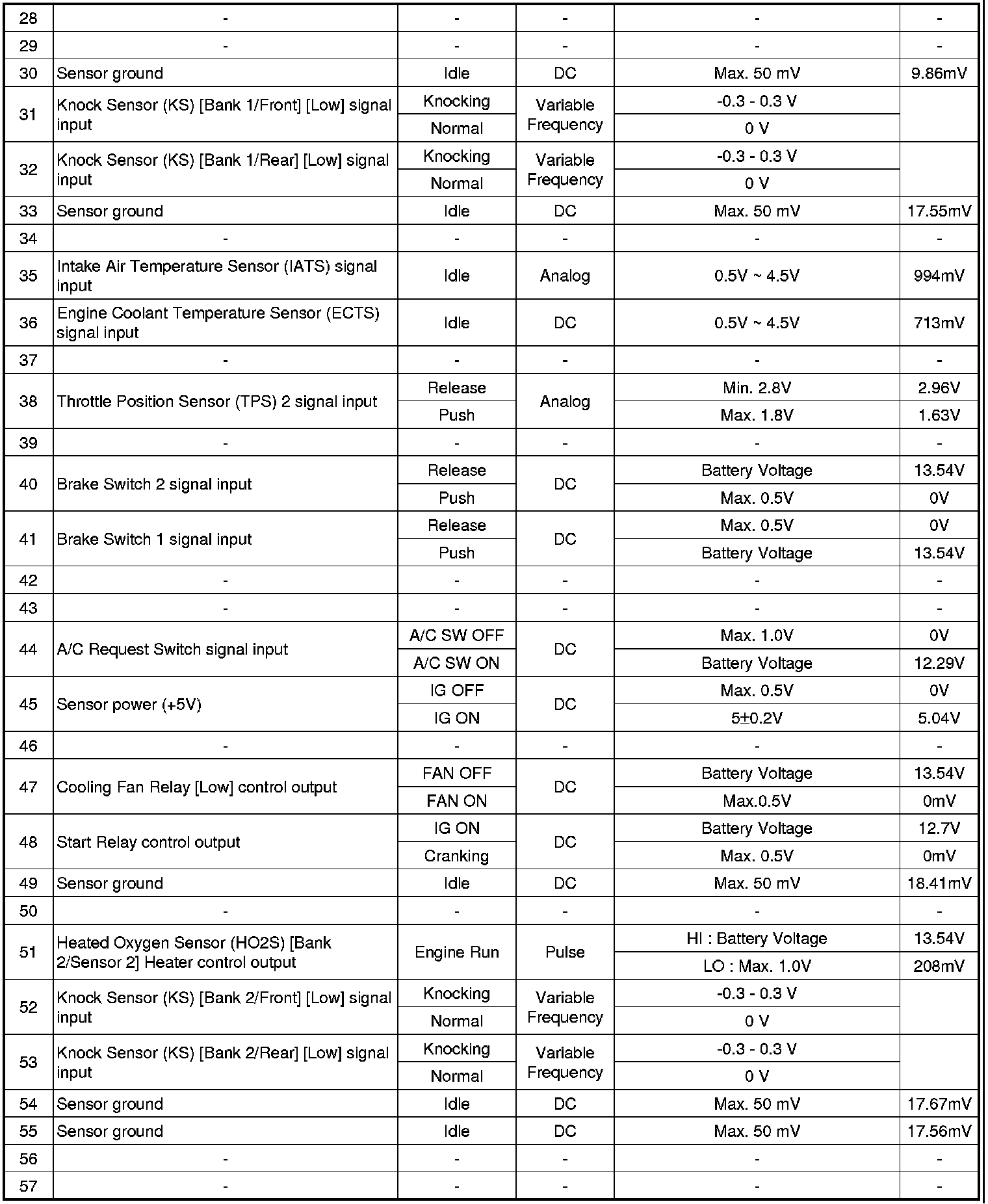

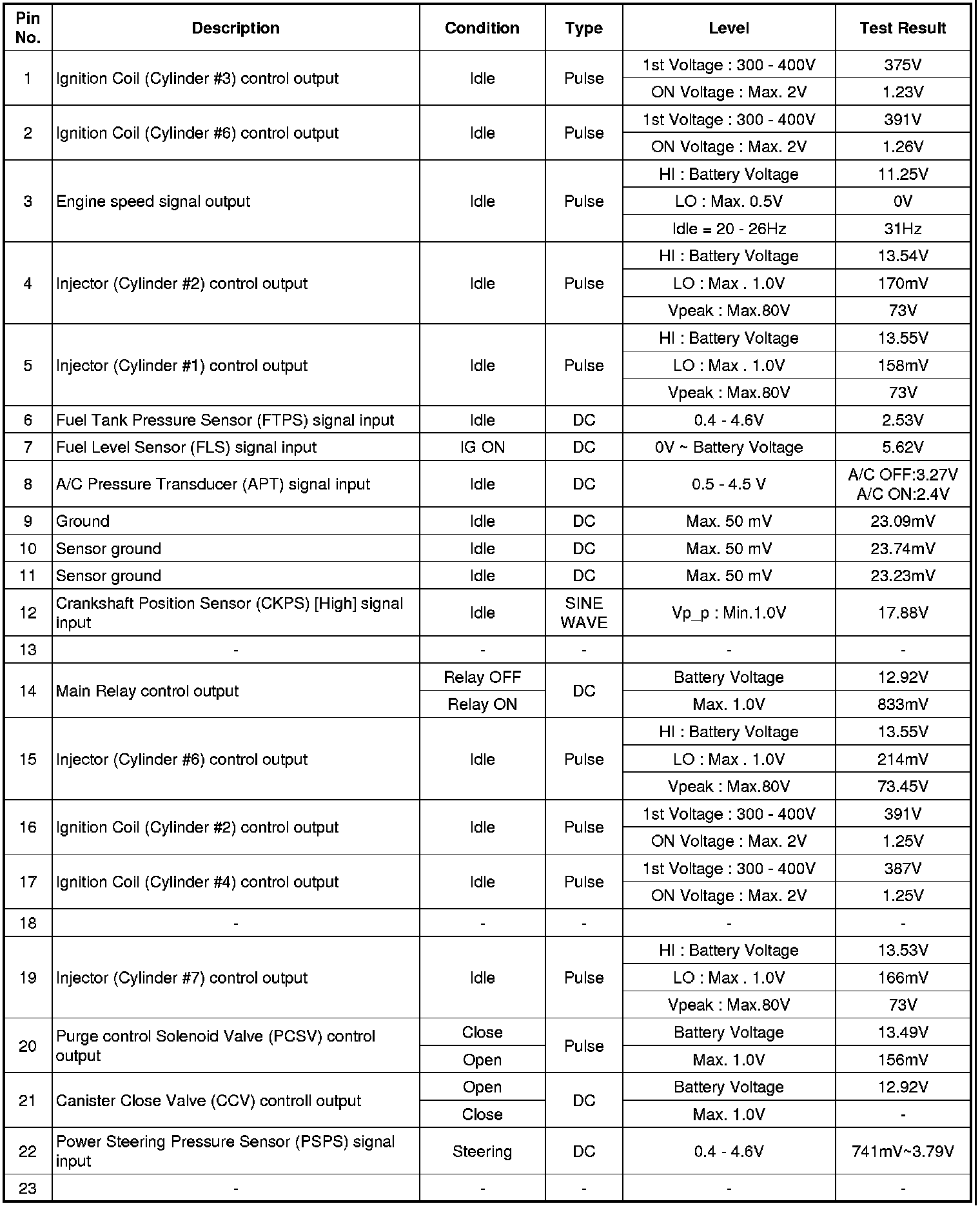

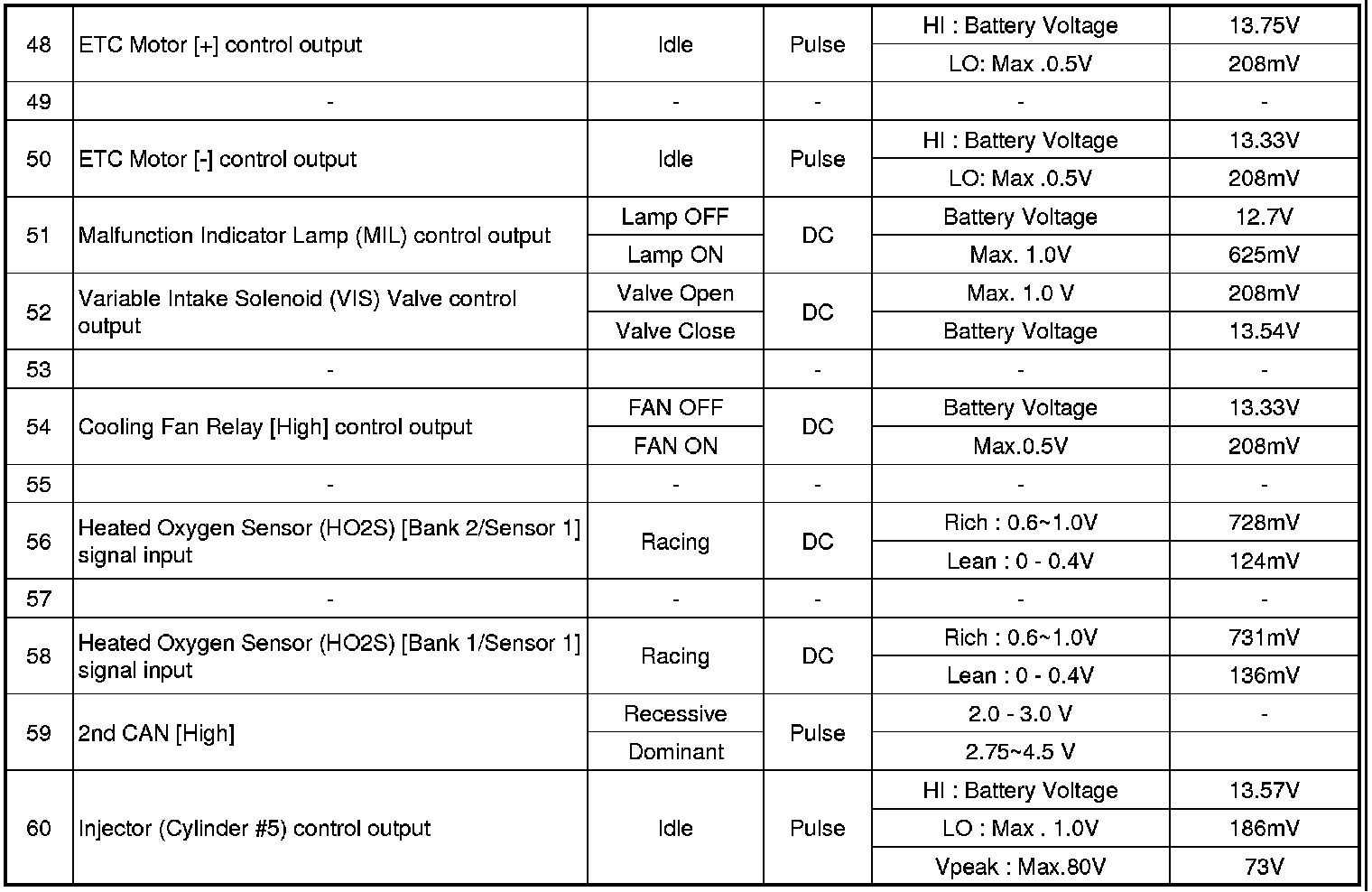

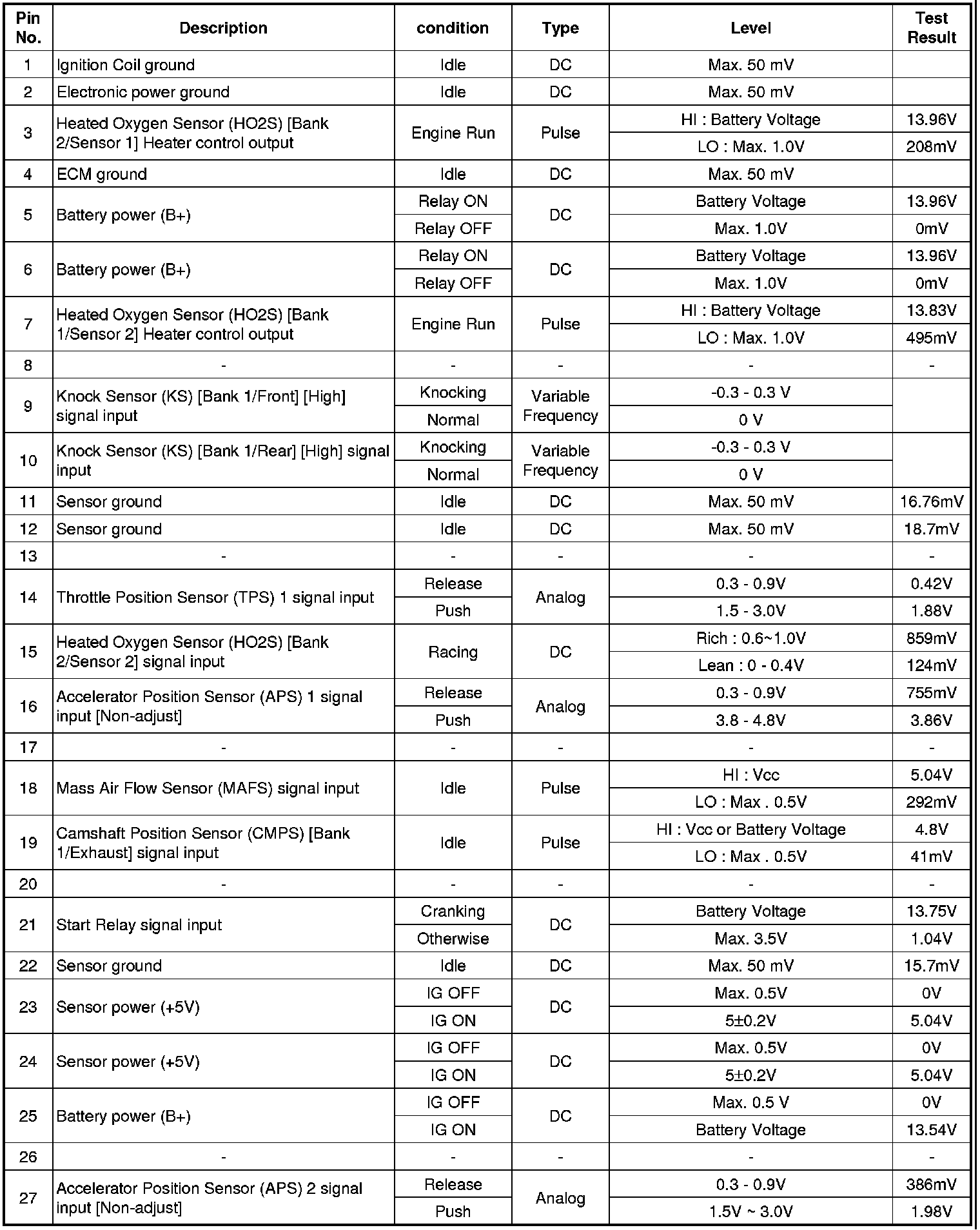

ECM Terminal Input/ Output signal
Connector [ CTG-A ]













Connector [ CTG-K ]
