Timing Chain Tensioner

Timing Chain Tensioner

Tightening torque

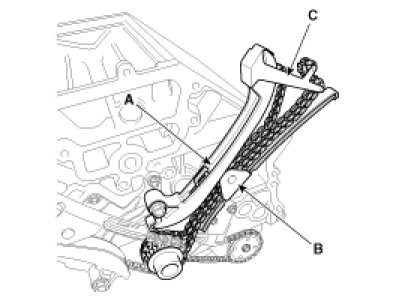

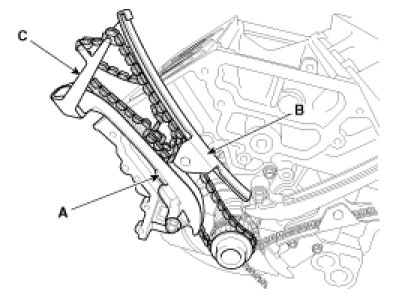

Timing chain tensioner arm bolts 21.6 - 25.5 Nm (2.2 - 2.6 kgf.m, 15.9 - 18.8 lb-ft)









NOTE:

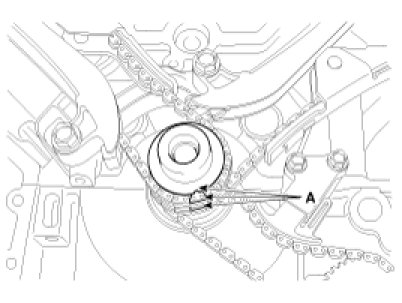

Align the timing mark of the friction plate and crankshaft sprocket.





Tightening torque 78.5 - 88.3 N.m (8.0 - 9.0 kgf.m, 57.9 - 65.1 lb-ft)
