Engine Control System - 4.6L
>>
Accelerator Position Sensor (APS)
>>
Schematic Diagrams
>>
Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram

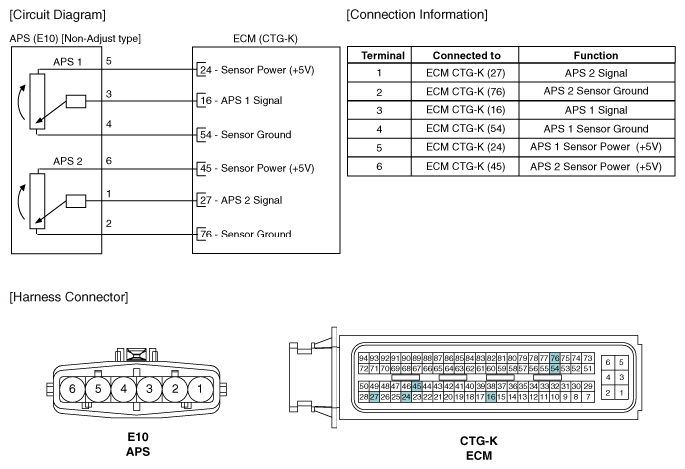

Fig 1: Accelerator Position Sensor (Non Adjust Type) - Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.

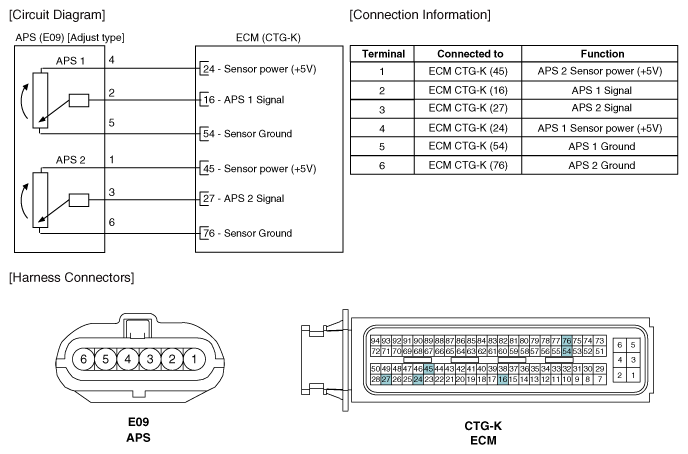

Fig 2: Accelerator Position Sensor (Adjust Type) - Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
