Components and Components Location: Components

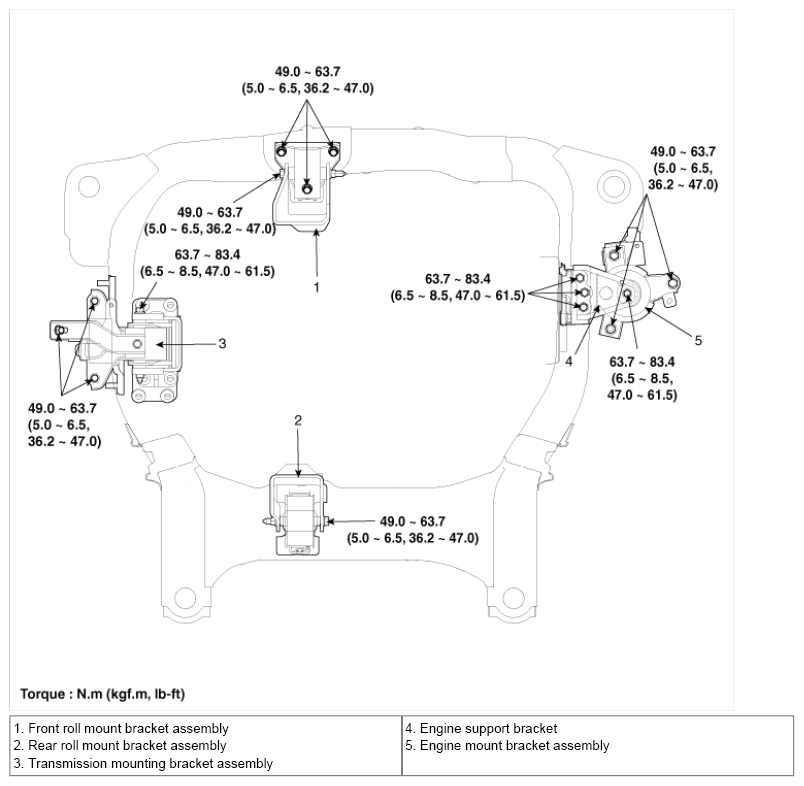

Fig 1: Engine Mounting With Torque Specifications

G06361575

Courtesy of KIA MOTORS AMERICA, INC.
