Monitor Scan Tool Data

Connect scan tool to data link connector (DLC)
Engine "ON".
Monitor the "INPUT SPEED SENSOR" parameter on the scan tool
Driving at speed of over 19 Mile/h (30 Km/h)
Specification: Increasing Gradually

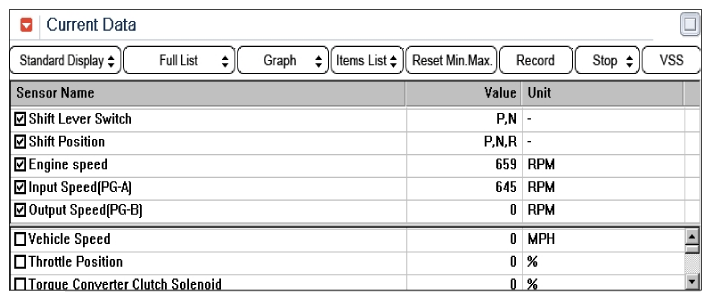

Fig 1: Scan Tool Display - Input Speed Sensor Parameter (P, N Range)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: Scan Tool Display - Input Speed Sensor Parameter (D 1st Gear)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 3: Scan Tool Display - Input Speed Sensor Parameter (2nd Gear)
Courtesy of KIA MOTORS AMERICA, INC.

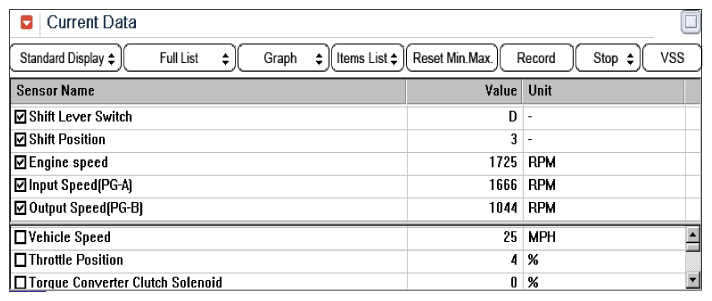

Fig 4: Scan Tool Display - Input Speed Sensor Parameter (3rd Gear)
Courtesy of KIA MOTORS AMERICA, INC.

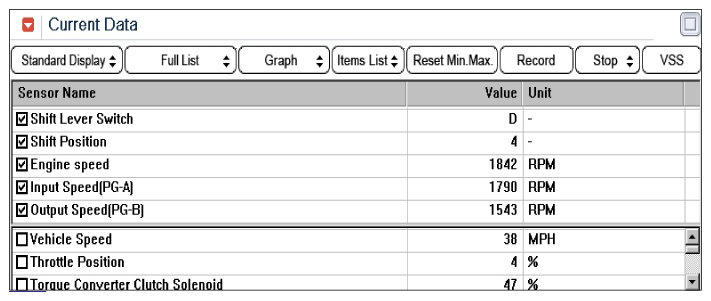

Fig 5: Scan Tool Display - Input Speed Sensor Parameter (4th Gear)
Courtesy of KIA MOTORS AMERICA, INC.

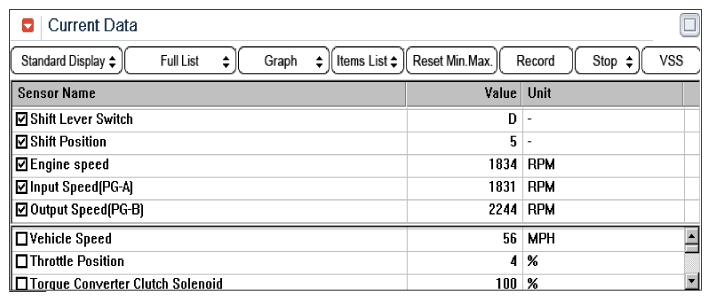

Fig 6: Scan Tool Display - Input Speed Sensor Parameter (5th Gear)
Courtesy of KIA MOTORS AMERICA, INC.
Does "Input Speed Sensor" follow the reference data?
YES
- Fault is intermittent caused by poor contact in the sensor's and/or TCM (PCM) connector or was repaired and TCM (PCM) memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Go to "W/HARNESS INSPECTION " procedure.
