Monitor Scan Tool Data

Connect scan tool to data link connector (DLC)
Engine "ON".
Monitor the "ENGINE SPEED, INPUT SPEED SENSOR, OUTPUT SPEED SENSOR, GEAR POSITION" parameter on the scan tool.

Perform the "STALL TEST" in gear position "1"

Specification: 2100-2800 engine RPM

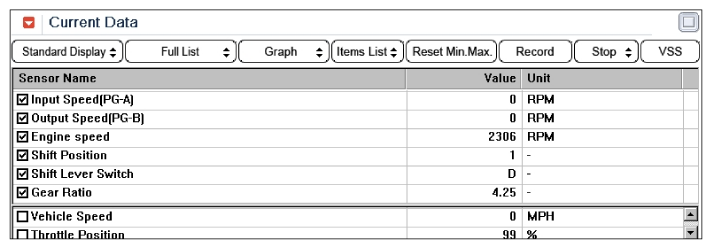

Fig 1: Scan Tool Display - Engine Speed, Input Speed Sensor, Output Speed Sensor, Gear Position Parameter

Courtesy of KIA MOTORS AMERICA, INC.

OPERATING ELEMENT OF EACH SHIFTING RANGE

GEAR POSITION REFERENCE

Low & Reverse Brake is released When the vehicle speed over the 5MPH (7km/h)

NOTE: Stall test procedure in D1 and reason Procedure

Warm up the engine
After positioning the select lever in "D", depress the foot brake pedal fully after that, depress the accelerator pedal to the maximum

* The slippage of 1st gear operating parts can be detected by stall test in D

Is "STALL TEST" within specifications?
YES
- Go to "W/HARNESS INSPECTION " procedure.
NO
- Go to "COMPONENT INSPECTION " procedure.

CAUTION:

Do not let anybody stand in front of or behind the vehicle while this test is being carried out.
Check the A/T fluid level and temperature and the engine coolant temperature.
- Fluid level: At the hot mark on the oil level gauge.
- Fluid temperature: 176-212°F (80-100°C).
- Engine coolant temperature: 176-212°F (80-100°C).
Chock both rear wheel (left and right).
Pull the parking brake lever on with the brake pedal fully depressed.
The throttle should not be left fully open for more than eight second.
If carrying out the stall test two or more time, move the select lever to the "N" position and run the engine at 1,000 RPM to let the A/T fluid cool down before carrying out subsequent.
