Immobilizer Control Module Connector End View

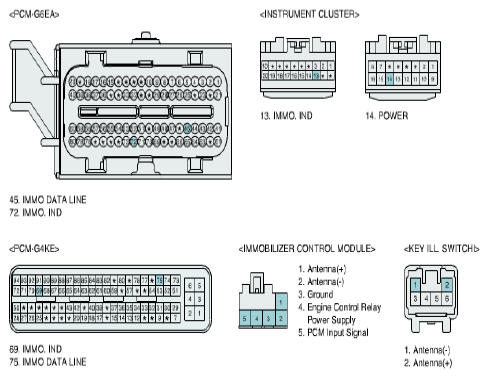

Fig 1: Immobilizer Control Module Connector End View
G06416683Courtesy of KIA MOTORS AMERICA, INC.
