Wave Form

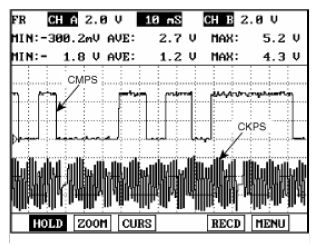

Fig 1: CMPS And CKPS Waveform (1 Of 2)
G06415812Courtesy of KIA MOTORS AMERICA, INC.

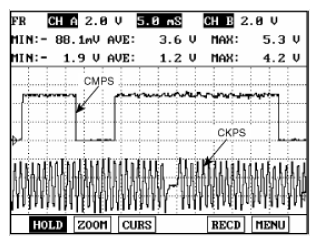

Fig 2: CMPS And CKPS Waveform (2 Of 2)
G06415813Courtesy of KIA MOTORS AMERICA, INC.
