ECM Harness Connector

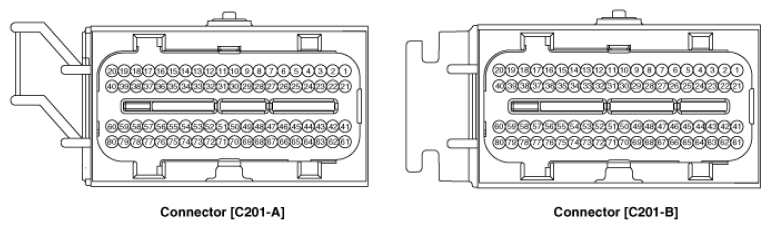

Fig 1: Identifying ECM Connectors Terminals
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
