Automatic Transaxle System: Troubleshooting: Notes

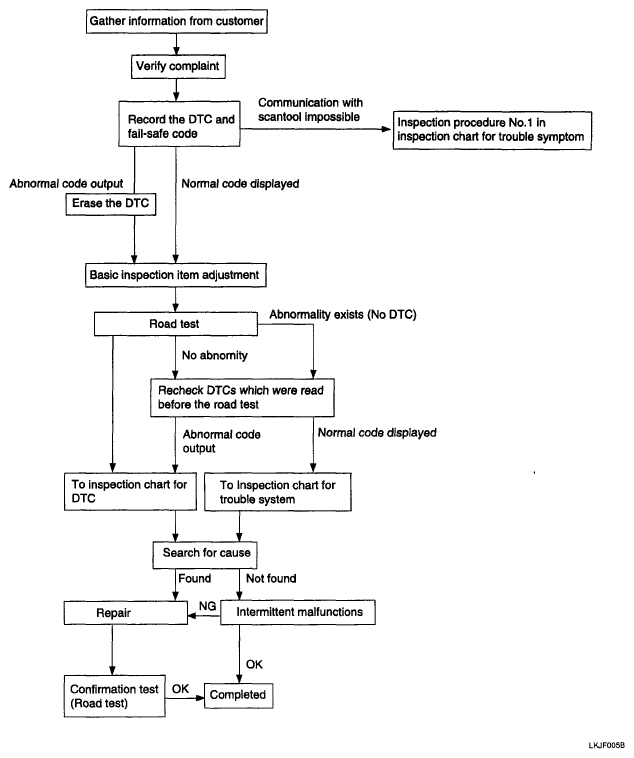

Fig 1: Troubleshooting Flow Chart

G04862528

Courtesy of KIA MOTORS AMERICA, INC.
