Repair and Diagnosis: Service Precautions

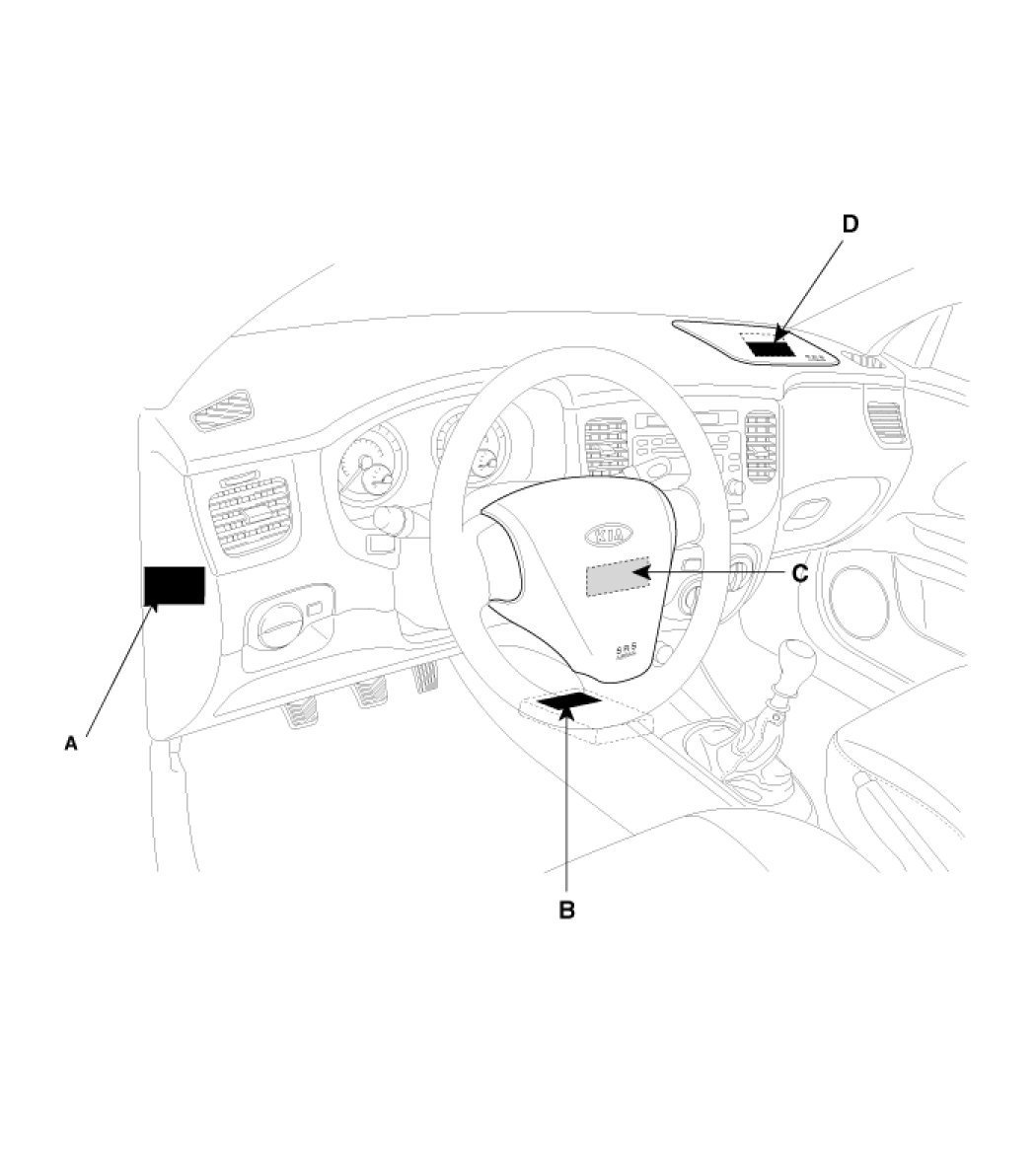

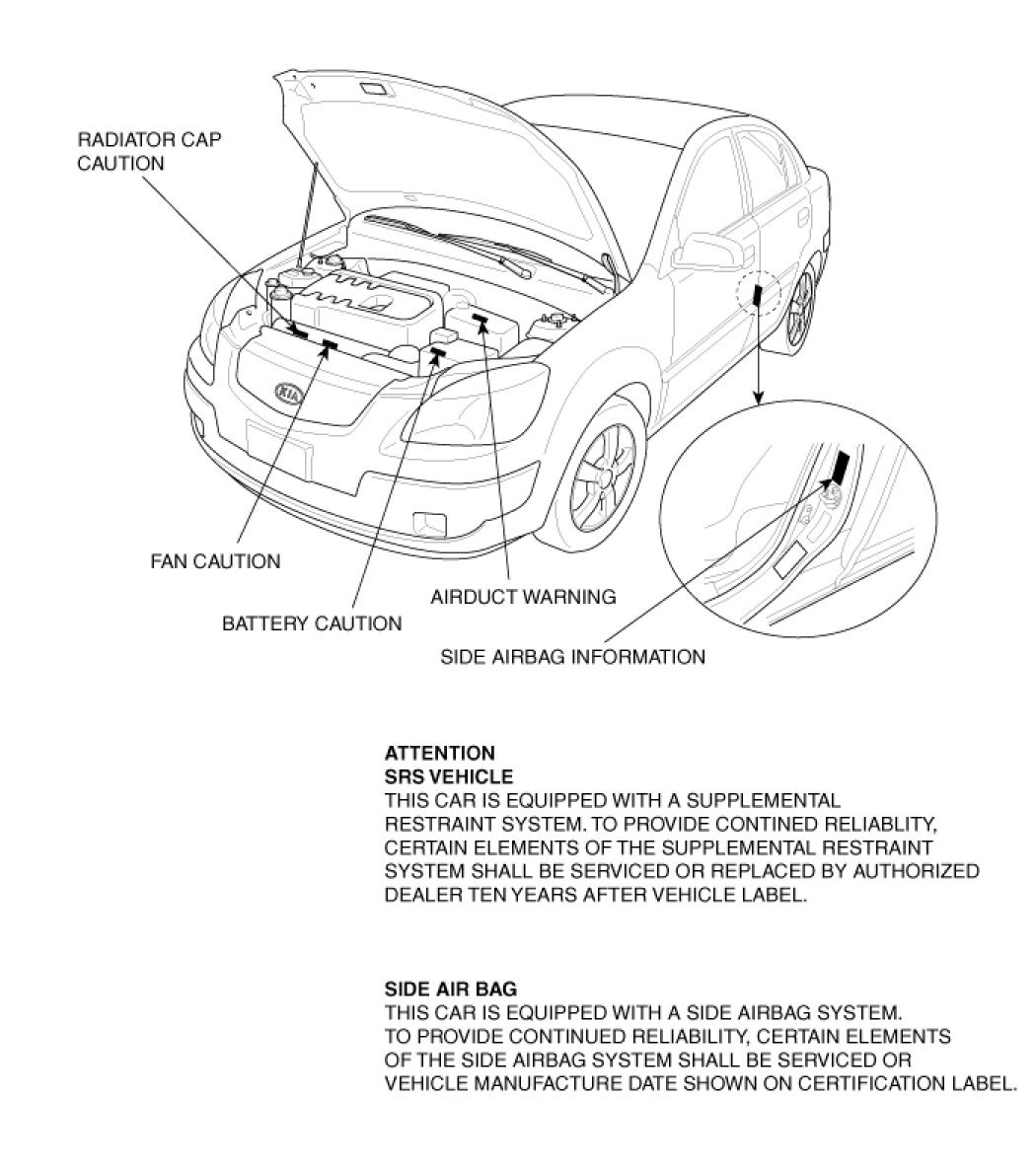

WARNING / CAUTION LABEL LOCATIONS

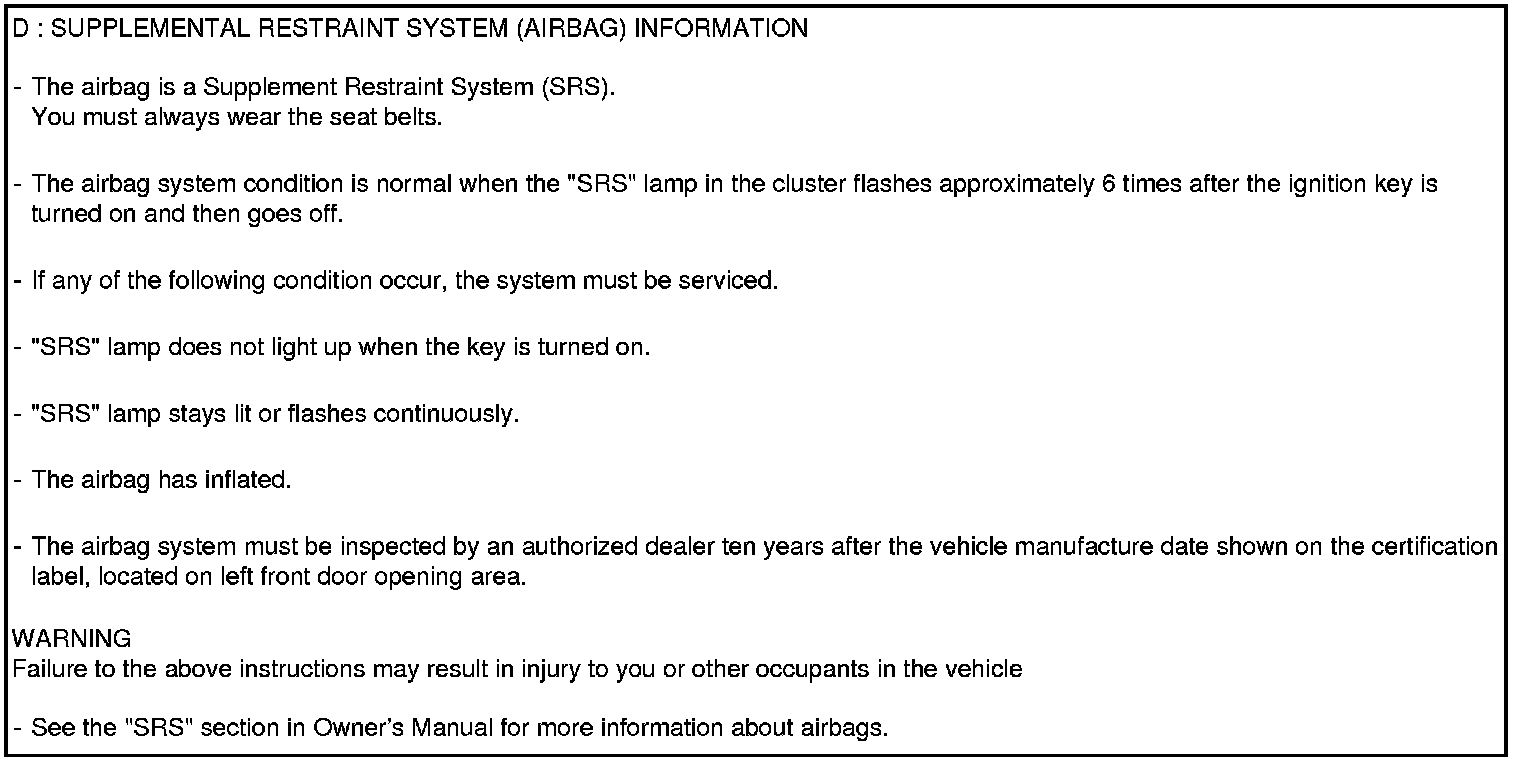

AIR BAG WARNING / CAUTION LABEL

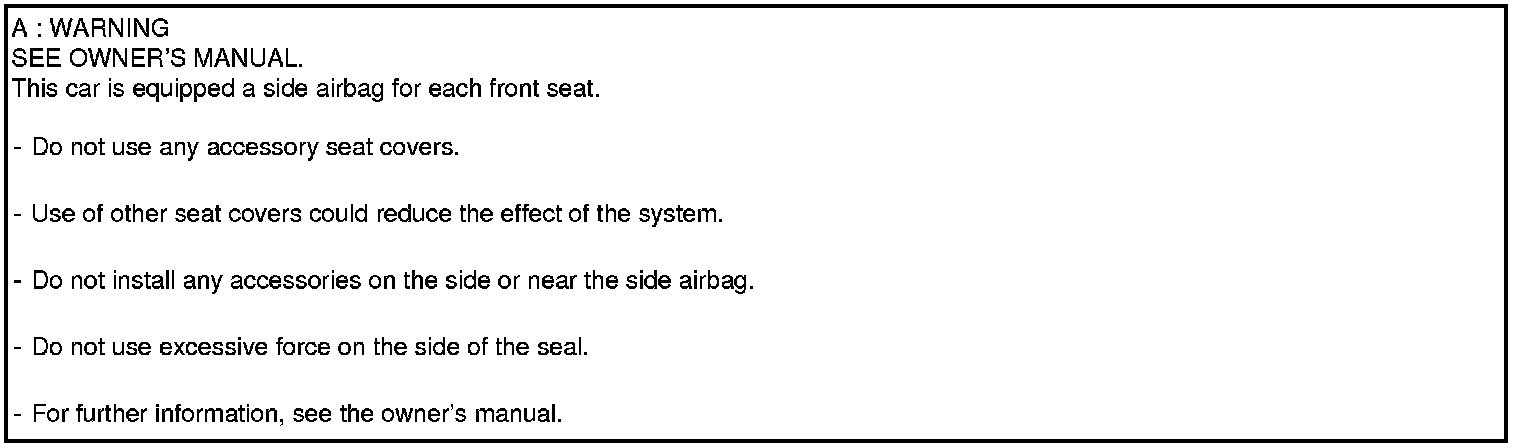

AIR BAG WARNING / CAUTION LABEL (CONT'D)

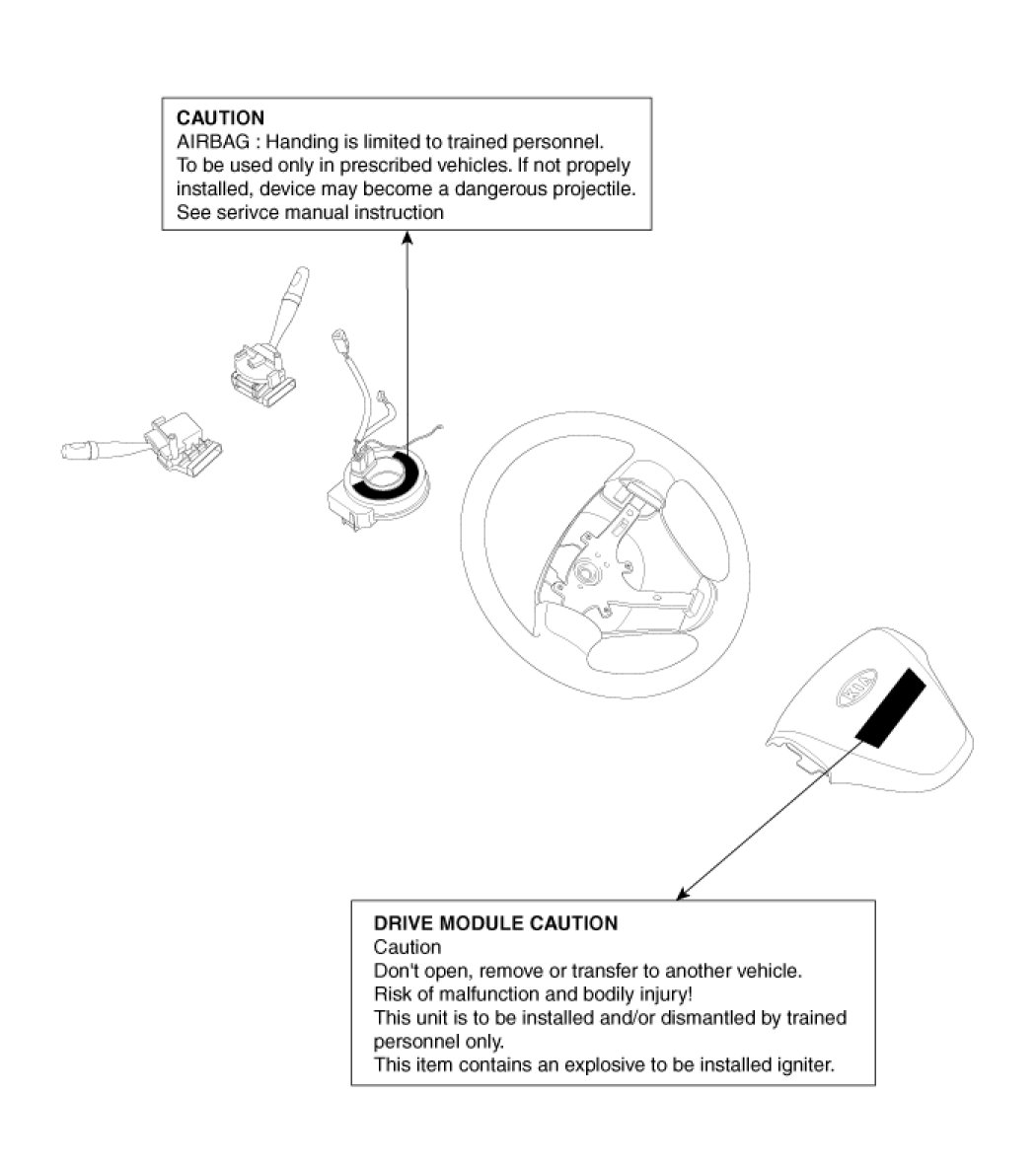

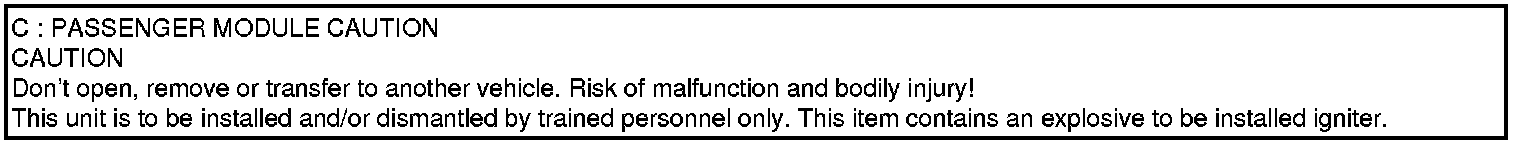

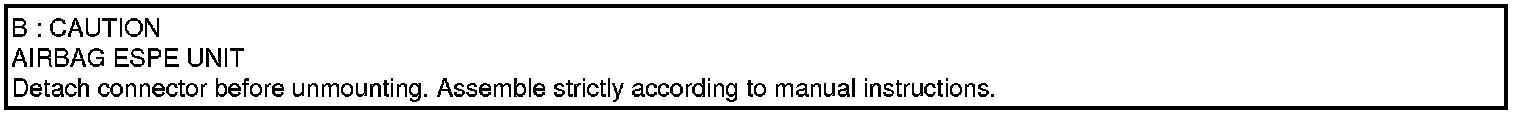

AIR BAG WARNING / CAUTION LABEL (CONT'D)





















BATTERY CAUTION LABEL DESCRIPTION
