Exhaust Manifold

Exhaust Manifold

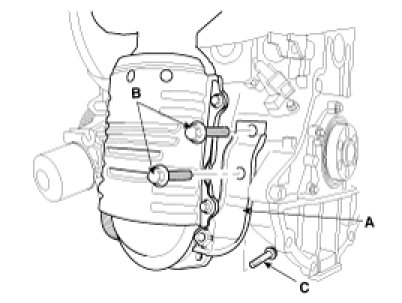

Exhaust Manifold Stay
Tightening torque
Bolts(B) 34.3 - 39.2 N.m (3.5 - 5.5 kgf.m, 25.3 - 28.9 lb-ft)
Bolts(C) 29.4 - 39.2 N.m (3.0 - 5.5 kgf.m, 21.7 - 28.9 lb-ft)

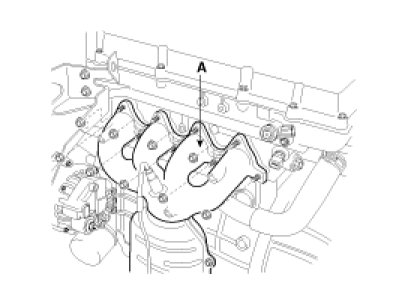

Exhaust Manifold
Tightening torque 17.7 - 24.5 N.m (1.8 - 2.5 kgf.m, 13.0 - 18.1 lb-ft)
