Monitor Scan Tool Data

  1. Connect scan tool to data link connector (DLC).
  2. Ignition "ON" & Engine "OFF".
  3. Monitor the "TRANSAXLE RANGE SWITCH" parameter on the scan tool.
  4. Shift selector lever from "P" range to other range.

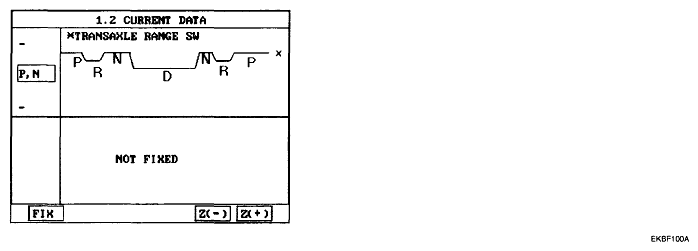

    Fig 1: Scan Tool Display - Transaxle Range Switch
    G04805082Courtesy of KIA MOTORS AMERICA, INC.
  5. Does "TRANSAXLE RANGE SWITCH" follow the reference data?

    YES

    • Fault is intermittent caused by poor contact in the sensor's and/or TCM (PCM) connectors or was repaired and TCM (PCM) memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO
