Cup Holder Assembly Replacement

  1. Remove the front console assembly. See REPLACEMENT .
  2. After removing the mounting bracket (A), remove the cup holder assembly (B).

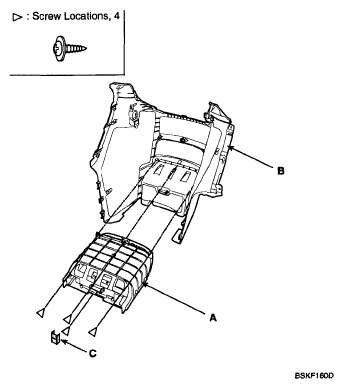

    Fig 1: Identifying Mounting Bracket And Cup Holder Assembly
    G04884071Courtesy of KIA MOTORS AMERICA, INC.
  3. Installation is the reverse of removal.
