Audio Assembly Replacement

Remove the center fascia panel. See REPLACEMENT .

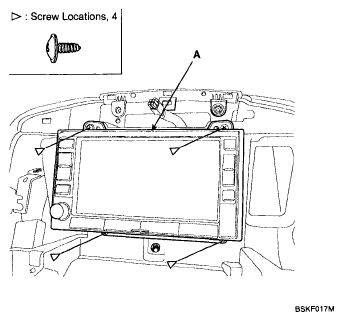

Loosen the screws.

Fig 1: Identifying Center Fascia Panel And Screw
Courtesy of KIA MOTORS AMERICA, INC.

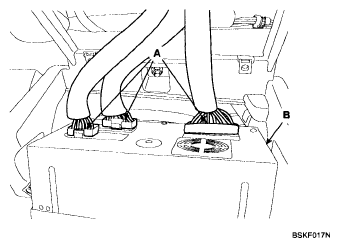

Disconnect the connector (A), then remove the audio assembly (B).

Fig 2: Identifying Connector And Audio Assembly
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse of removal.
NOTE:
- Make sure the connector are plugged in properly.
