Cluster Replacement

  1. Remove the cluster fascia panel. See REPLACEMENT .
  2. Loosen the screws.

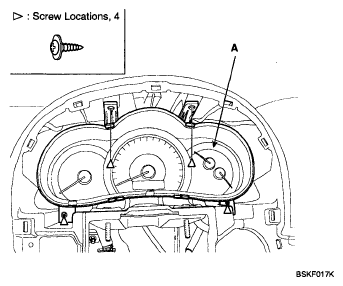

    Fig 1: Identifying Cluster Panel And Screw
    G04884084Courtesy of KIA MOTORS AMERICA, INC.
  3. Disconnect the cluster connectors (A), then remove the cluster (B).

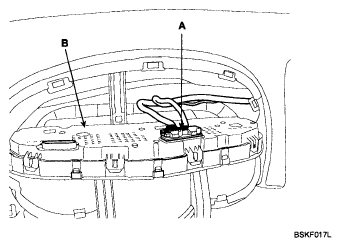

    Fig 2: Identifying Cluster Connectors And Cluster
    G04884085Courtesy of KIA MOTORS AMERICA, INC.
  4. Installation is the reverse of removal.
    NOTE:
    • Make sure the connector are plugged in properly.
