Sorento Base, A5SR2
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System
>>
Purge Control Solenoid Valve (PCSV)
>>
Repair Procedures
>>
Inspection
>>
Schematic Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Schematic Diagram

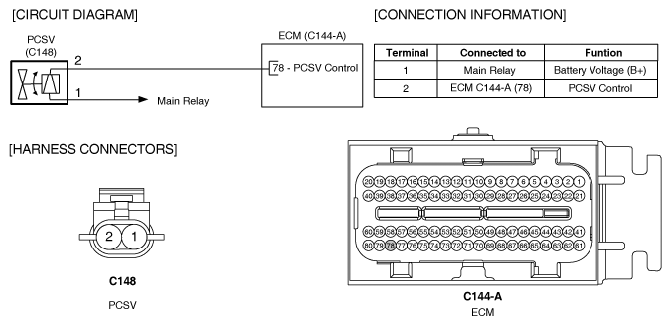

Fig 1: Purge Control Solenoid Valve (PCSV) Schematic Diagram
Courtesy of KIA MOTORS AMERICA, INC.
