Sorento EX, 4WD, Part Time, A5SR2
>>
Repair and Diagnosis
>>
Restraints
>>
Restraints Control Systems
>>
SRS Control Module (Air Bag)
>>
Schematic Diagrams
>>
SRSCM Connector Terminals
>>
SRSCM Harness Connector
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
SRSCM Harness Connector

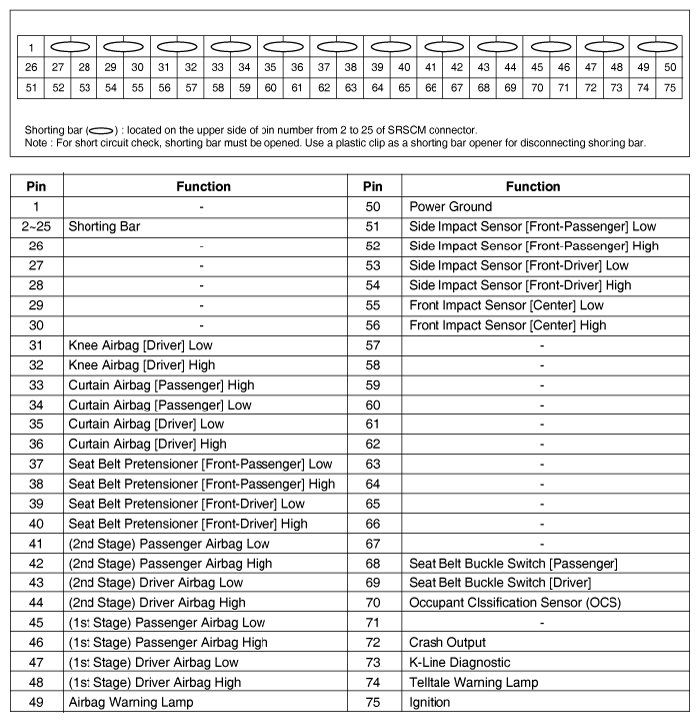

Fig 1: Identifying SRSCM Harness Connector Terminals
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
