Spectra EX, 2.0 2, Automatic
>>
Repair and Diagnosis
>>
Restraints
>>
Restraints Control Systems
>>
Supplement Restraint System Control Module (SRSCM) - Except With OCS
>>
Troubleshooting
>>
B1381: Side Airbag [Front-Driver] Circuit Short To Battery Line; B1385: Side Airbag [Front-Passenger] Circuit Short To Battery Line
>>
Schematic Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Schematic Diagram

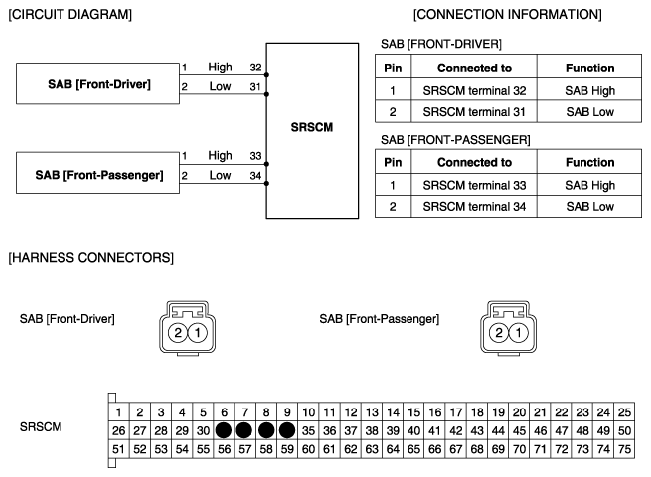

Fig 1: Side Airbag Squib And SRSCM - Schematic Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
