Supplement Restraint System Control Module (SRSCM) - Except With OCS
>>
Troubleshooting
>>
B2503: Warning Lamp Circuit Open Or Short To Ground; B2504: Warning Lamp Circuit Short Or Short To Battery Line
>>
Schematic Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Schematic Diagram

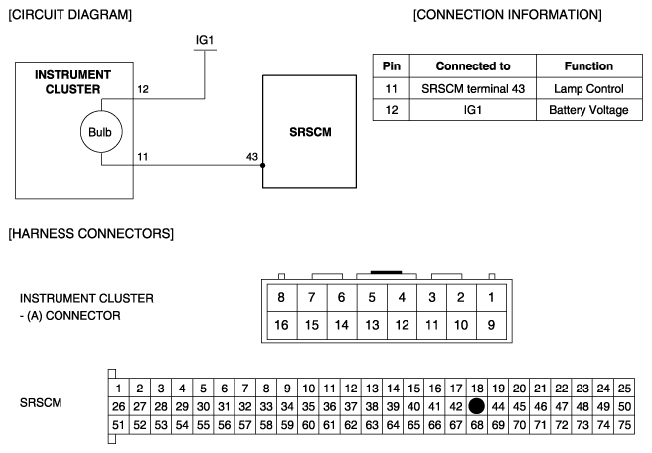

Fig 1: Instrument Cluster And SRSCM - Schematic Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
