Oil Temperature Sensor For ECM





SPECIFICATIONS

INPUT SENSORS

CVVT Oil Temperature Sensor (OTS)
> Type: Thermistor type (built in MAFS)

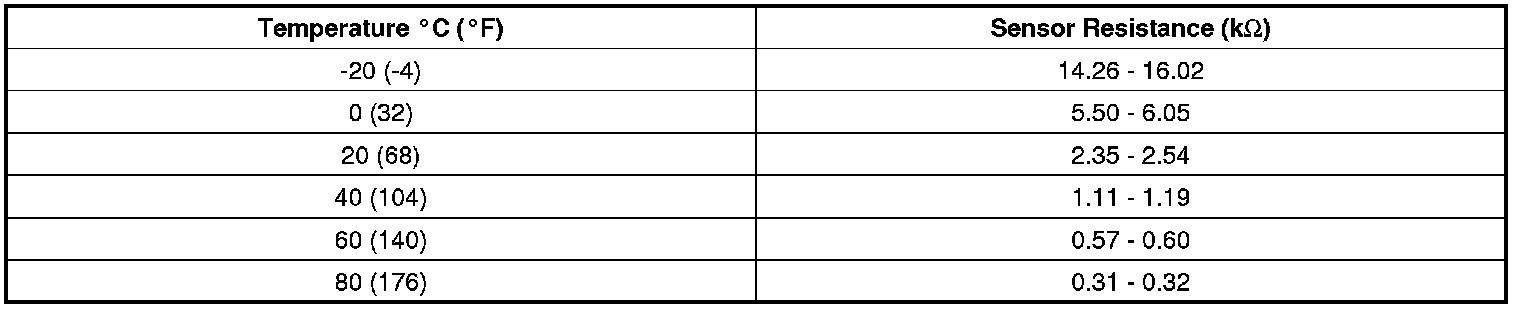

> Specification
