Throttle Position Sensor





SPECIFICATIONS

INPUT SENSORS

THROTTLE POSITION SENSOR (TPS)
> Type: Variable resistor type

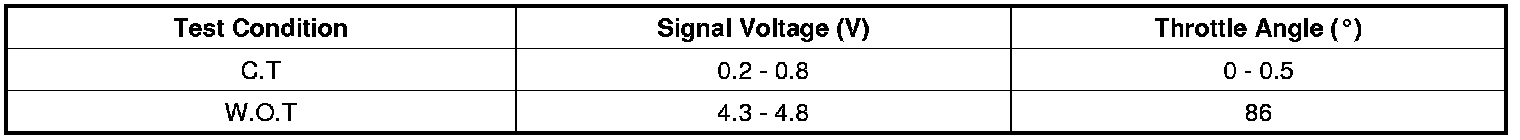

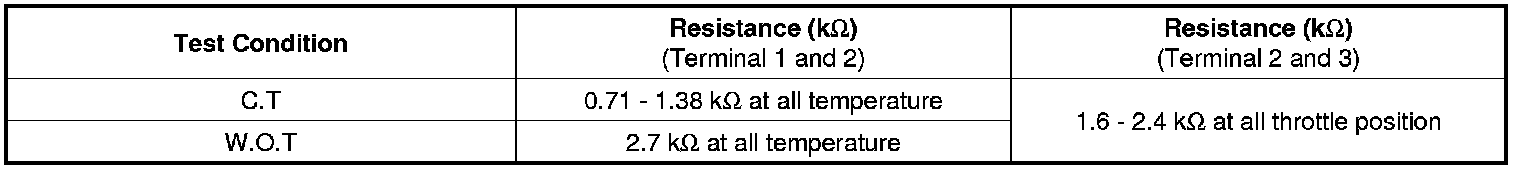

> Specification
