DTC Troubleshooting Procedures (1 Of 2)
>>
P0123: Throttle/Pedal Position Sensor/Switch 'A' Circuit High Input
>>
Schematic Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Schematic Diagram

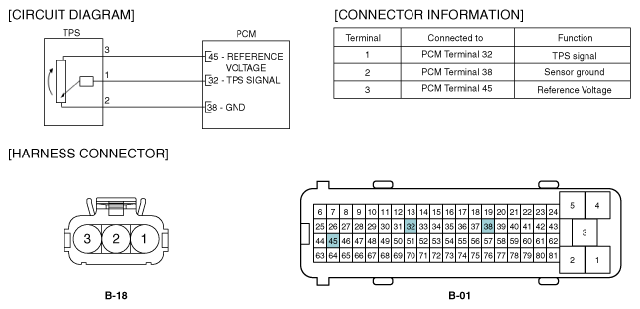

Fig 1: Throttle Position Sensor - Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
