Steering Column/Shaft: Components

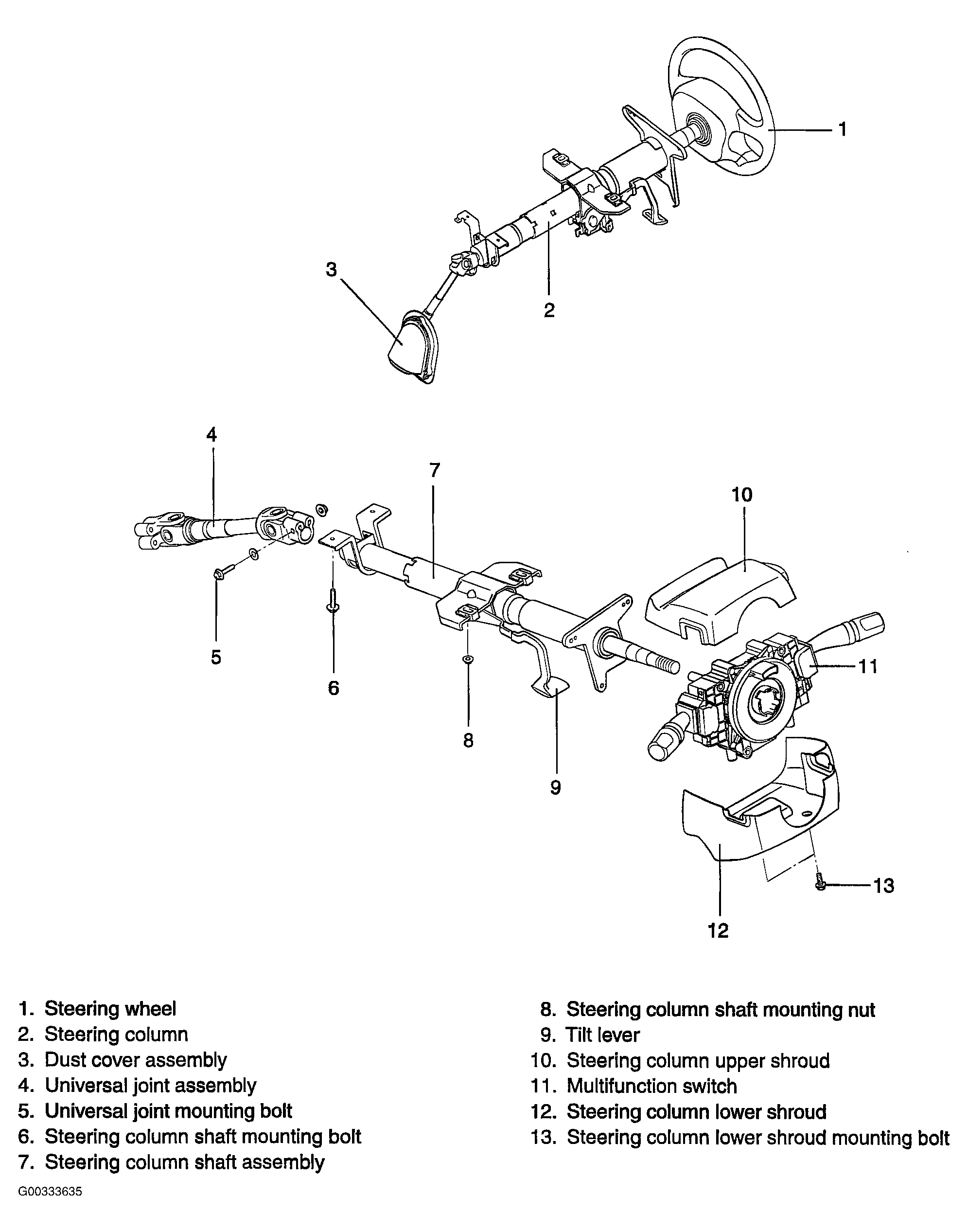

Fig 1: Identifying Steering Column/Shaft Components

G00333635

Courtesy of KIA MOTORS AMERICA, INC.
