Spectra5 2.0 2, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
DTC Troubleshooting Procedures (1 Of 2)
>>
P0030: Ho2S Heater Control Circuit (Bank1/Sensor1)
>>
Schematic Diagram
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Schematic Diagram

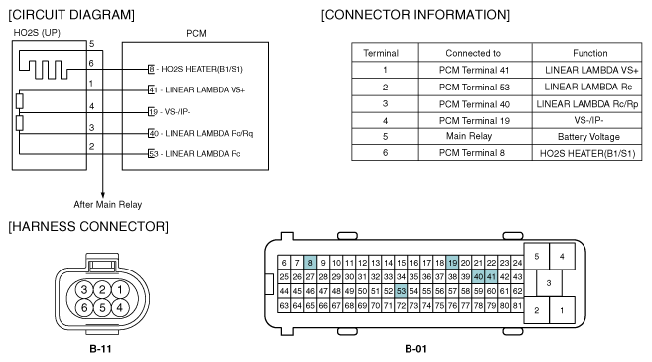

Fig 1: HO2S Heater Control - Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
