Signal Circuit Inspection

  1. Ignition "OFF".
  2. Disconnect "TRANSAXLE RANGE SWITCH" and 'TCM (PCM)" connector.
  3. Measure resistance between each terminal of the sensor harness connector and TCM (PCM) harness connector as below.

    Specification:

    SPECIFICATION

    Pin No of "TRANSAXLE RANGE SWITCH" C23
    No. 1    		 C23
    No. 2    		 C23
    No. 3    		 C23
    No. 4    		 C23
    No. 5    		 C23
    No. 6    		 C23
    No. 7
    Pin No of "TCM (PCM)" harness C52
    No. 24    		 C52
    No. 21    		 C52
    No. 19    		 C52
    No. 18    		 C52
    No. 20    		 C52
    No. 22    		 C52
    No. 23
    Specification 0Ω 0Ω 0Ω 0Ω 0Ω 0Ω 0Ω

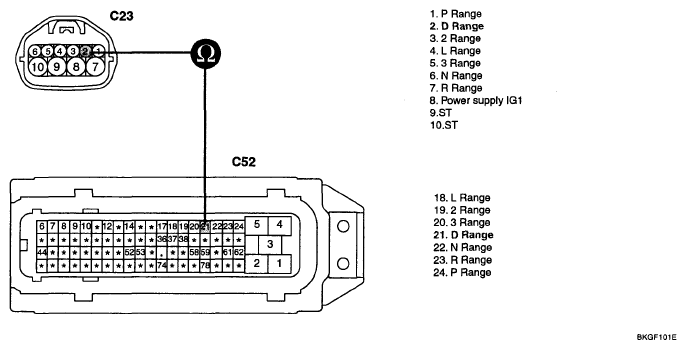

    Fig 1: Measuring Resistance Between Terminal Of Sensor Harness Connector And TCM (PCM) Harness Connector
    G04864564Courtesy of KIA MOTORS AMERICA, INC.
  4. Is resistance within specifications?

    YES

    NO
