Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

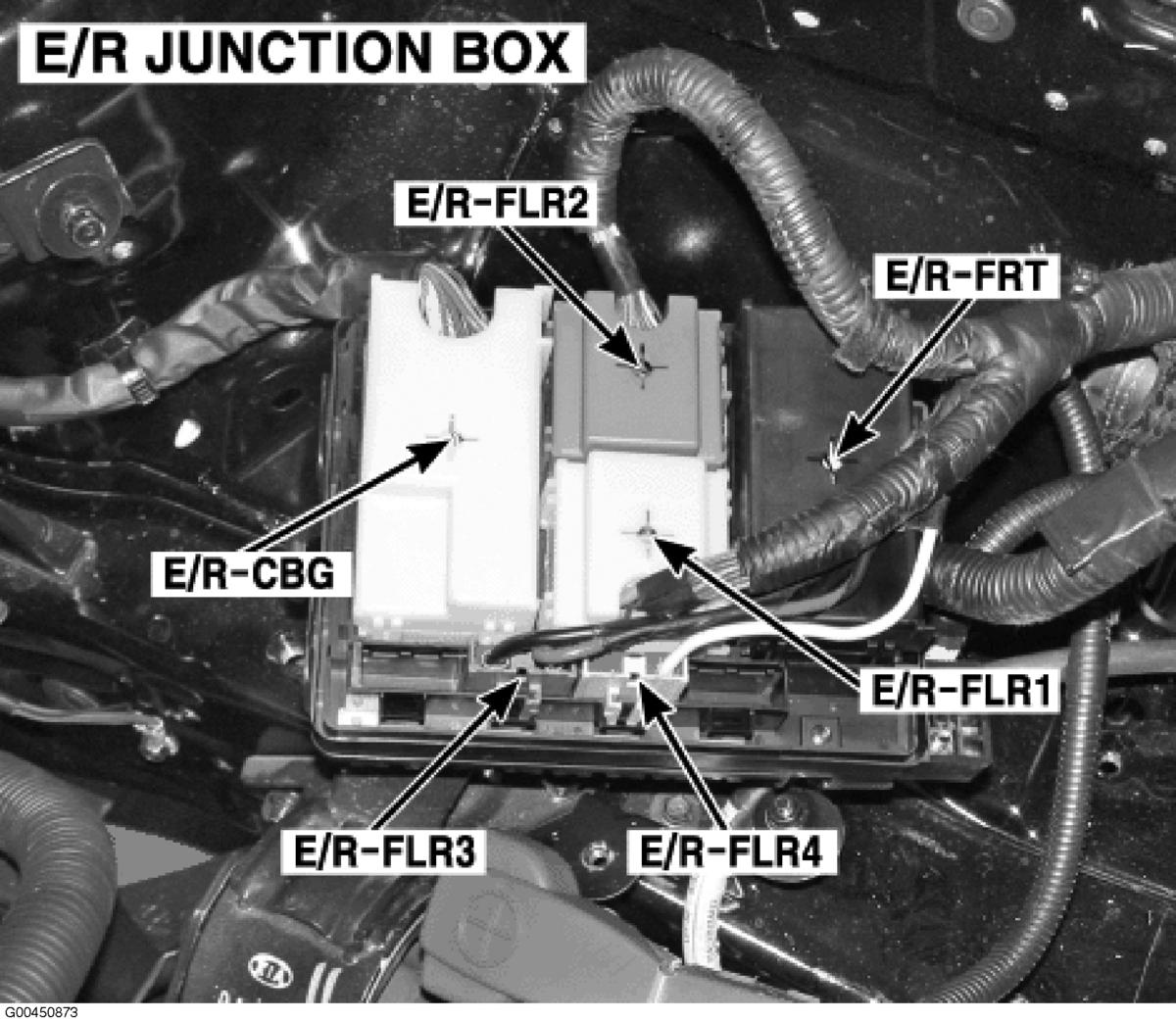

Engine Room (E/R) Junction Box Left rear of engine compartment. See Figure.

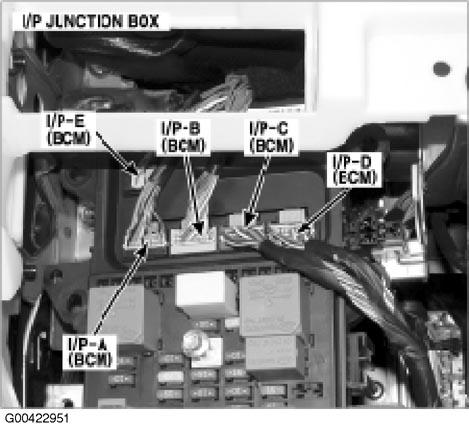

Instrument Panel (I/P) Junction Box Under left side of dash. See Figure.
