Control Units

CONTROL UNITS LOCATION

Component Location

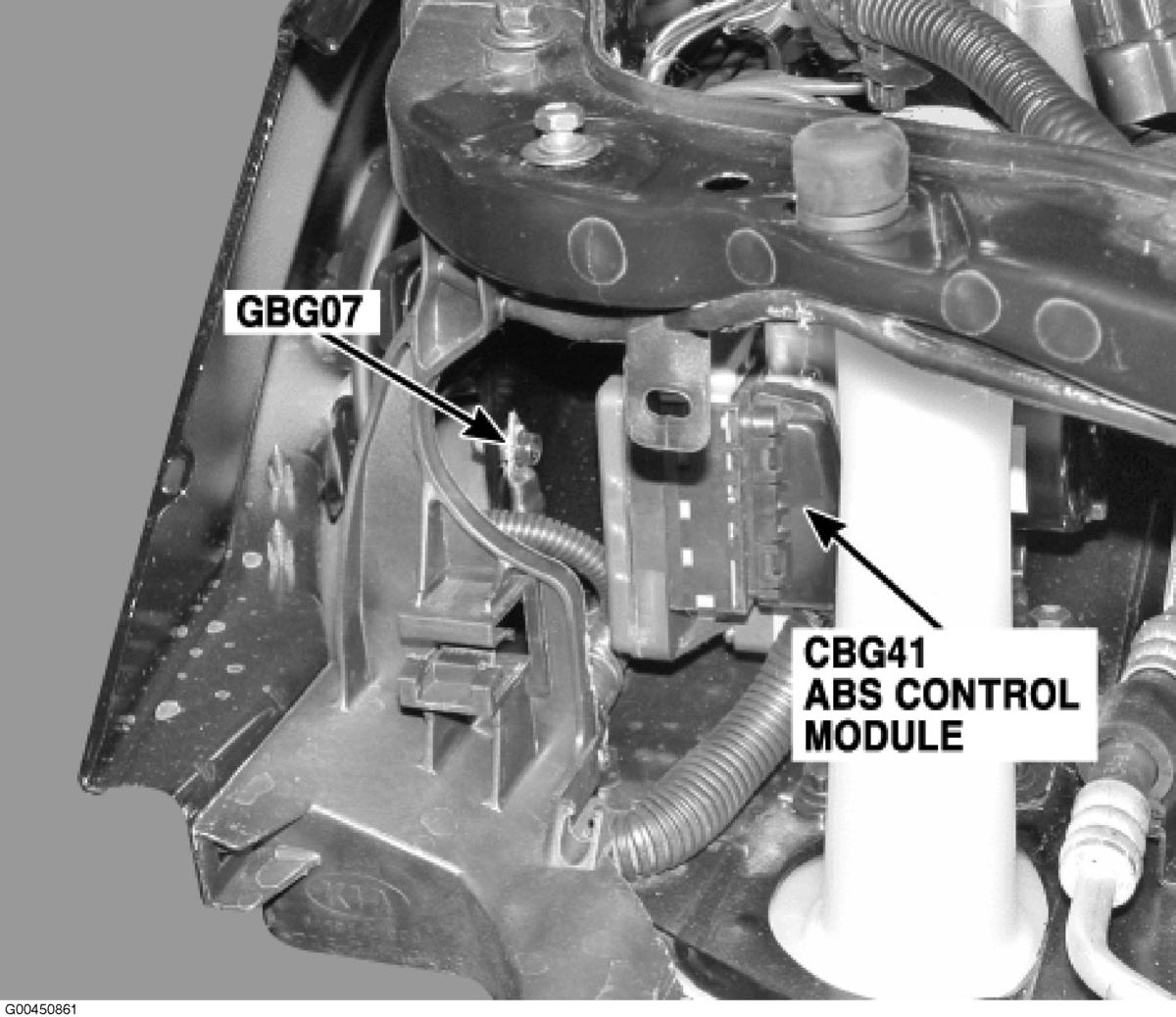

ABS Control Module At right front of engine compartment. See Figure.

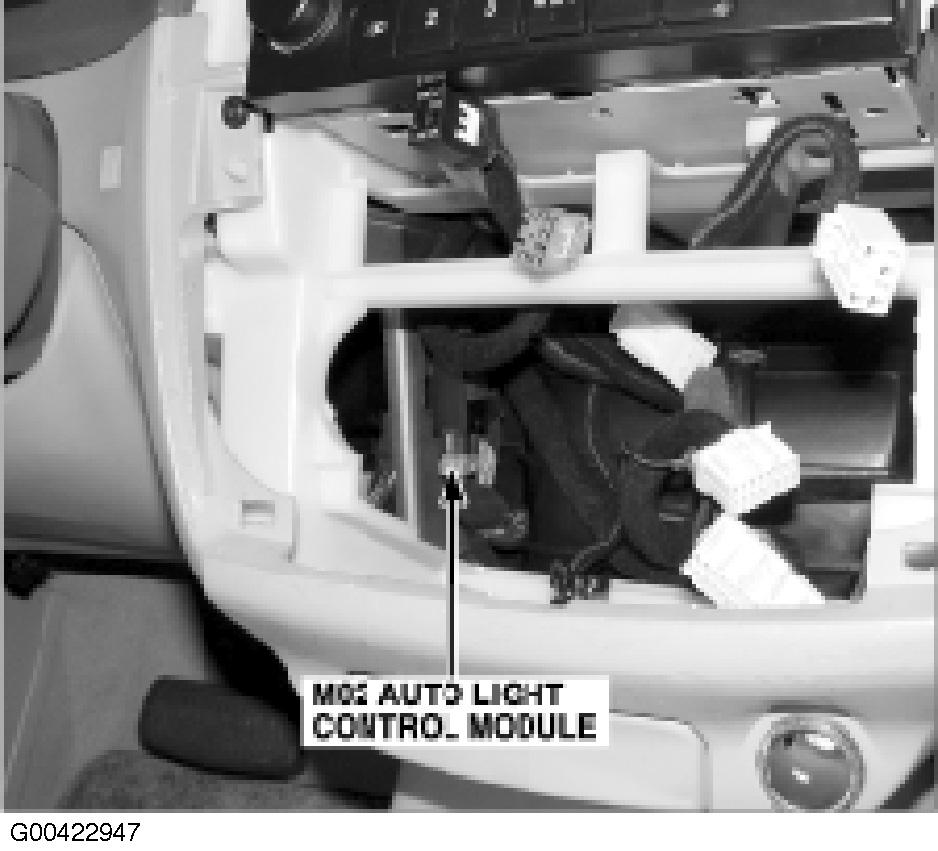

Auto Light Control Module Behind center of dash. See Figure.
BCM Integral to instrument panel (I/P) junction box. See Figure.

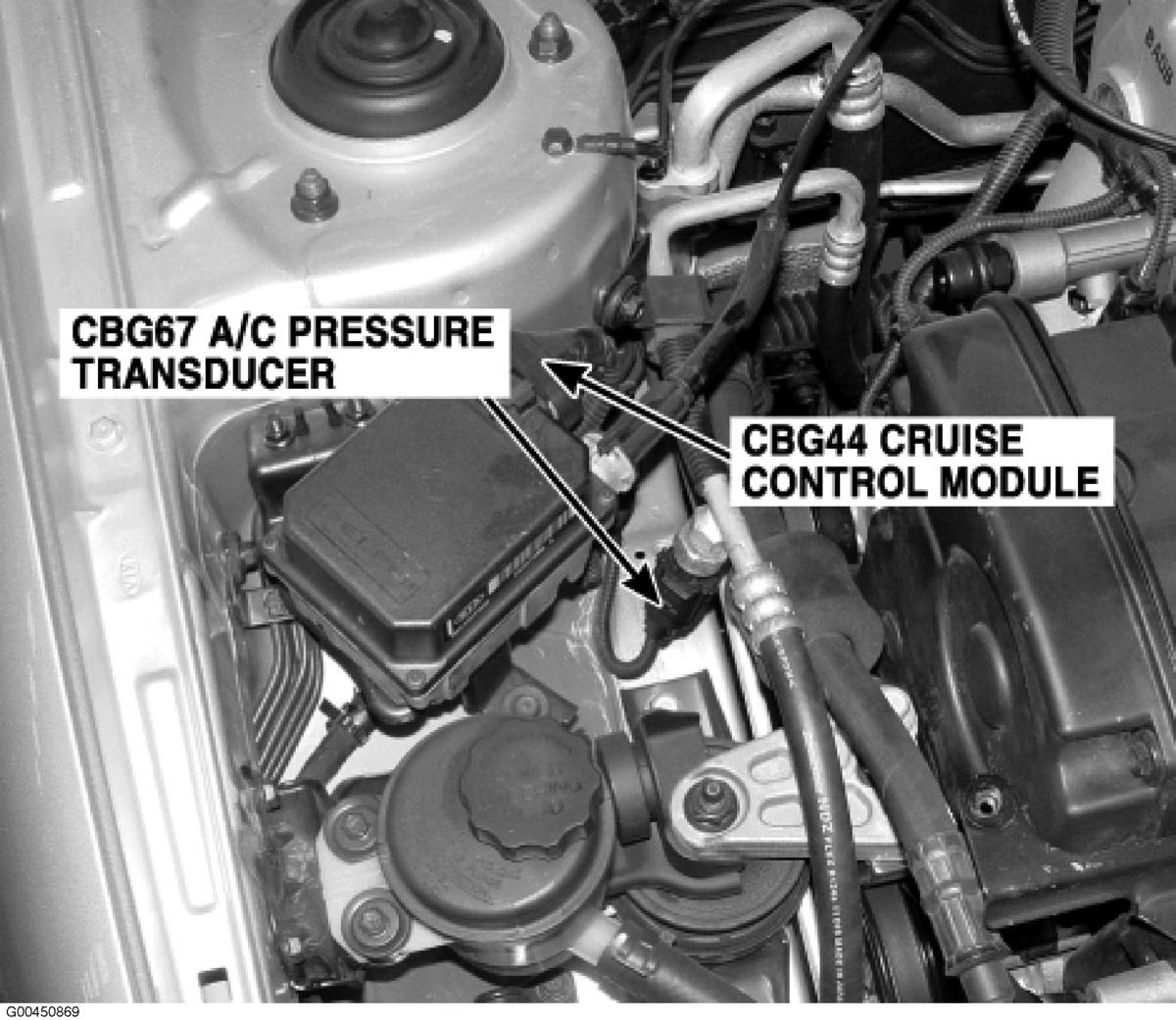

Cruise Control Module At right rear of engine compartment. See Figure.

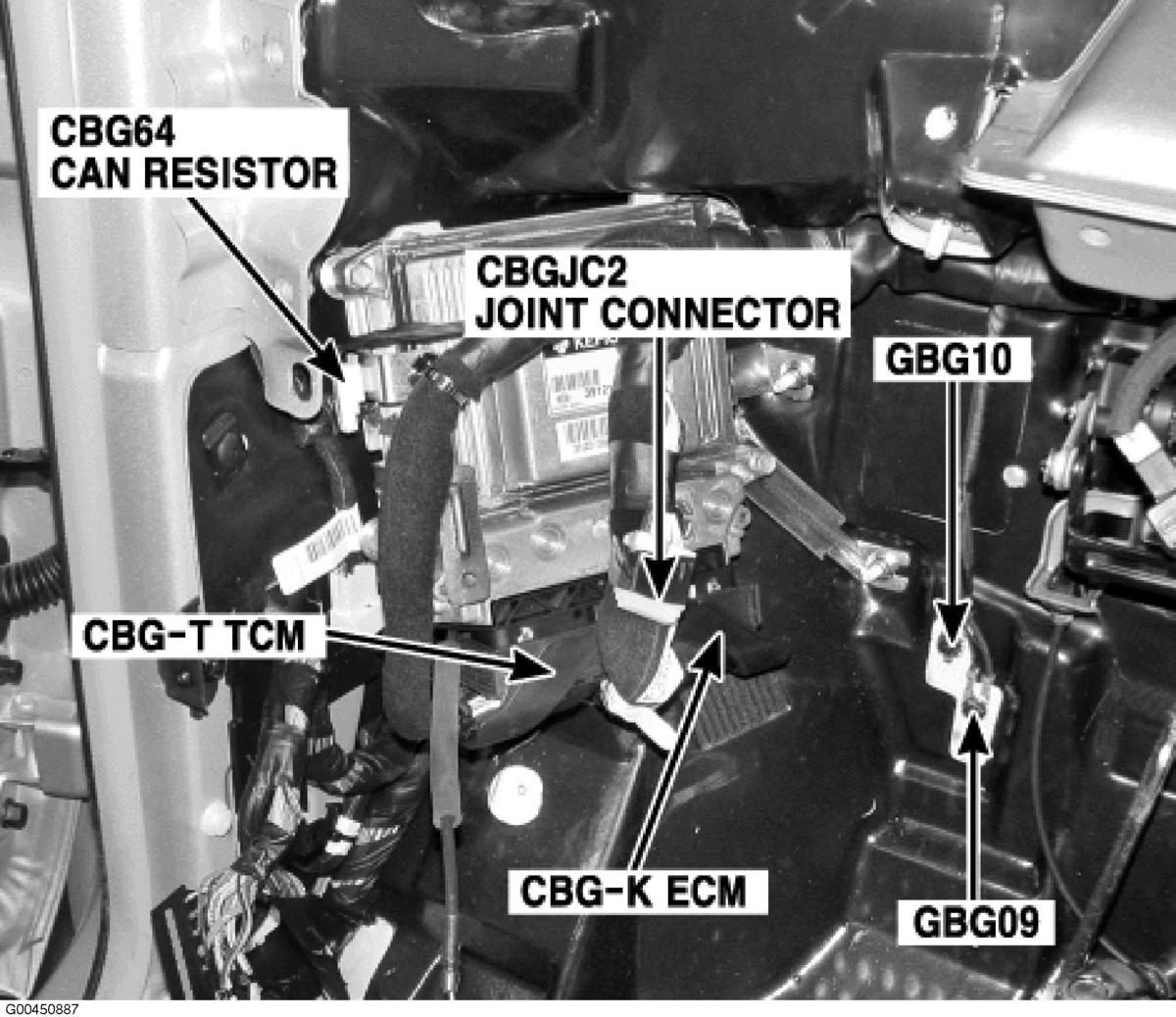

ECM Integral to instrument panel (I/P) junction box. See Figure.

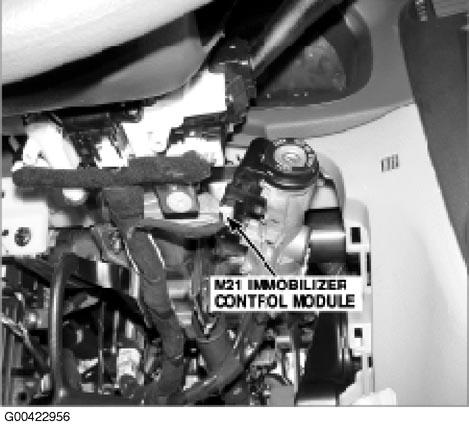

Immobilizer Control Module On steering column. See Figure.

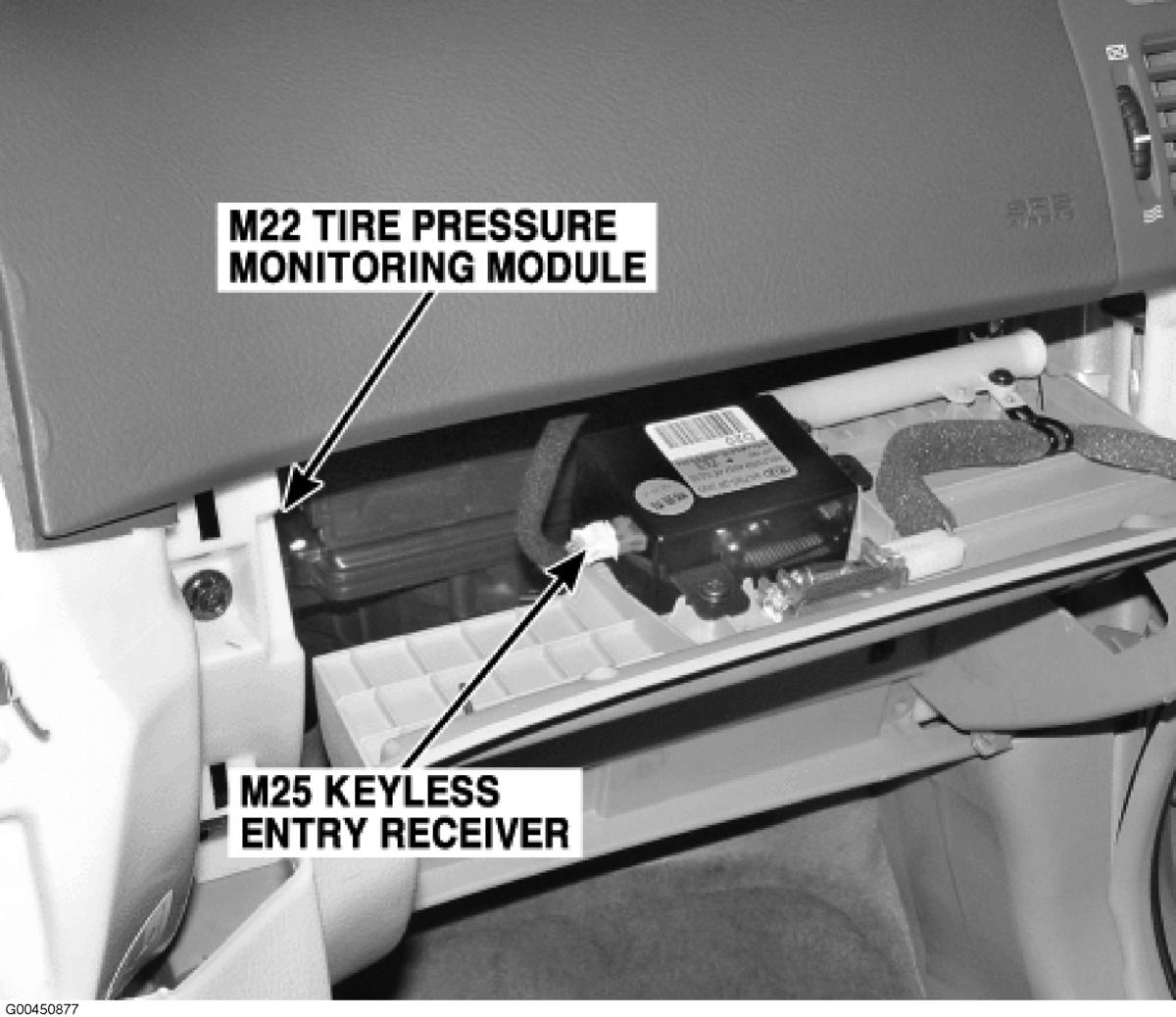

Keyless Entry Receiver Under glove compartment. See Figure.

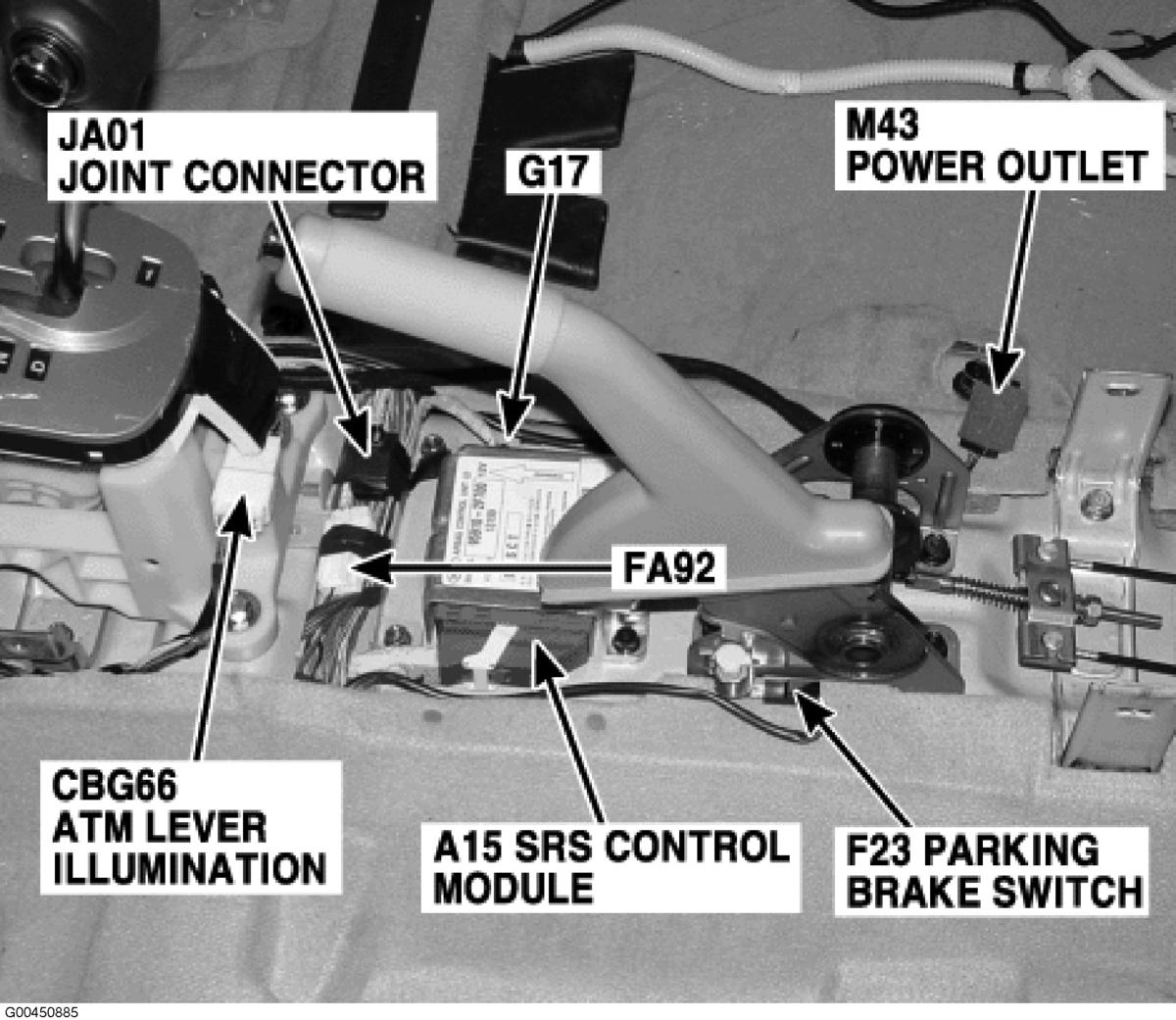

SRS Control Module Under center console. See Figure.
TCM Integral to instrument panel (I/P) junction box. See Figure.
Tire Pressure Monitoring Module Behind right side of dash. See Figure.
