Timing Chain: Components

[2.0 ULEV - Single CVVT]

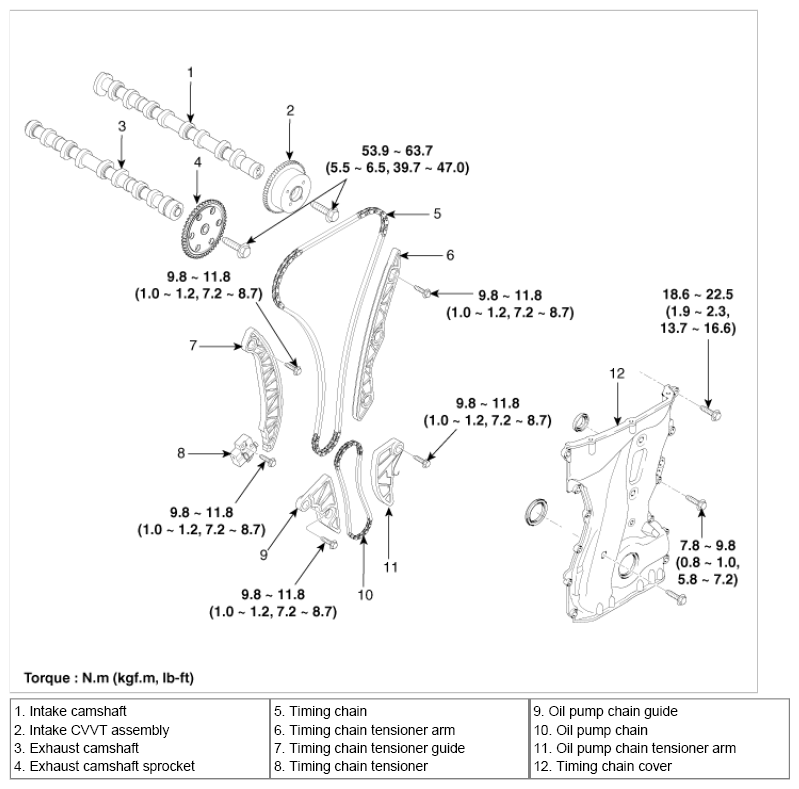

Fig 1: Timing Chain Replacement Components With Torque Specifications (2.0 ULEV - Single CVVT)
G06495055Courtesy of KIA MOTORS AMERICA, INC.

[Dual CVVT]

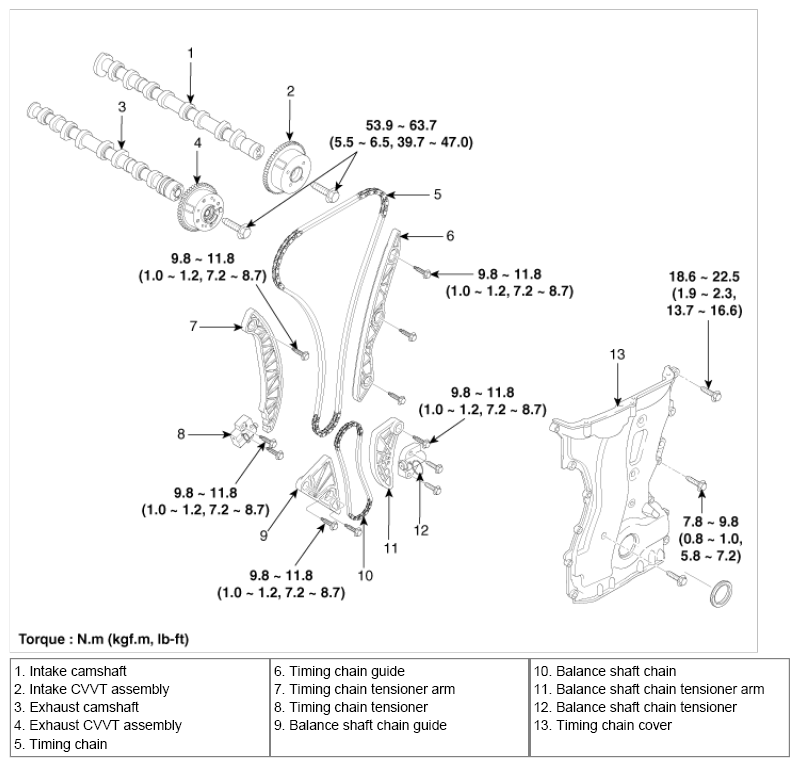

Fig 2: Timing Chain Replacement Components With Torque Specifications (Dual CVVT)
G06495056Courtesy of KIA MOTORS AMERICA, INC.
