2010
>>
Forte EX, Automatic
>>
Repair and Diagnosis
>>
Restraints
>>
Restraints Control Systems
>>
Restraints DTC Diagnosis
>>
DTC B1409: SIS (Side Impact Sensor) Front-Driver Communication Error
>>
General Information
>>
Diagnostic Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Circuit Diagram

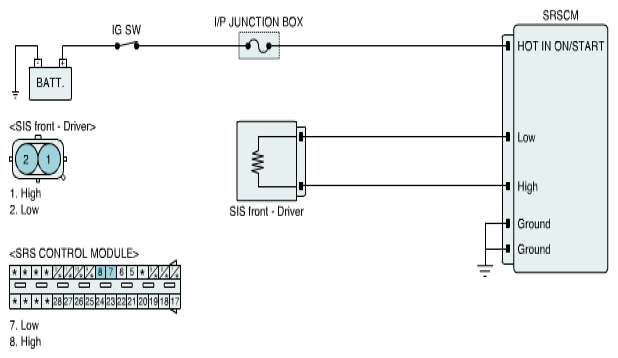

Fig 1: Driver Front Side Impact Sensor & SRSCM - Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
