Components and Components Location: Components(1)

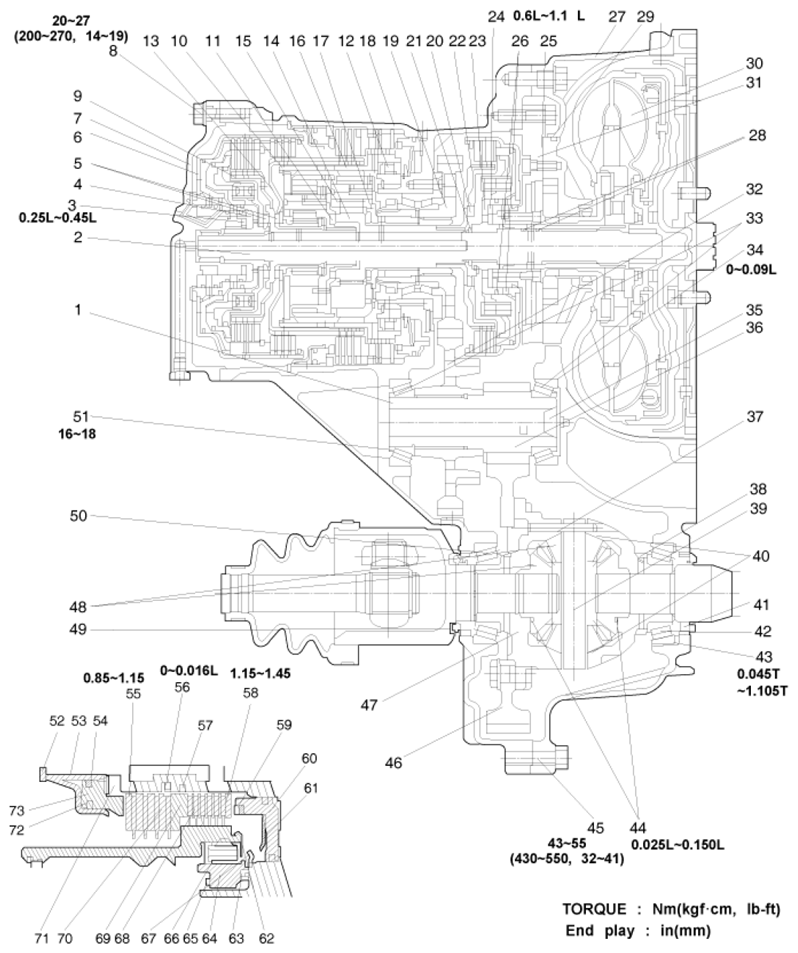

Fig 1: Automatic Transaxle Replacement Components And Replacement Components With Torque Specifications (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

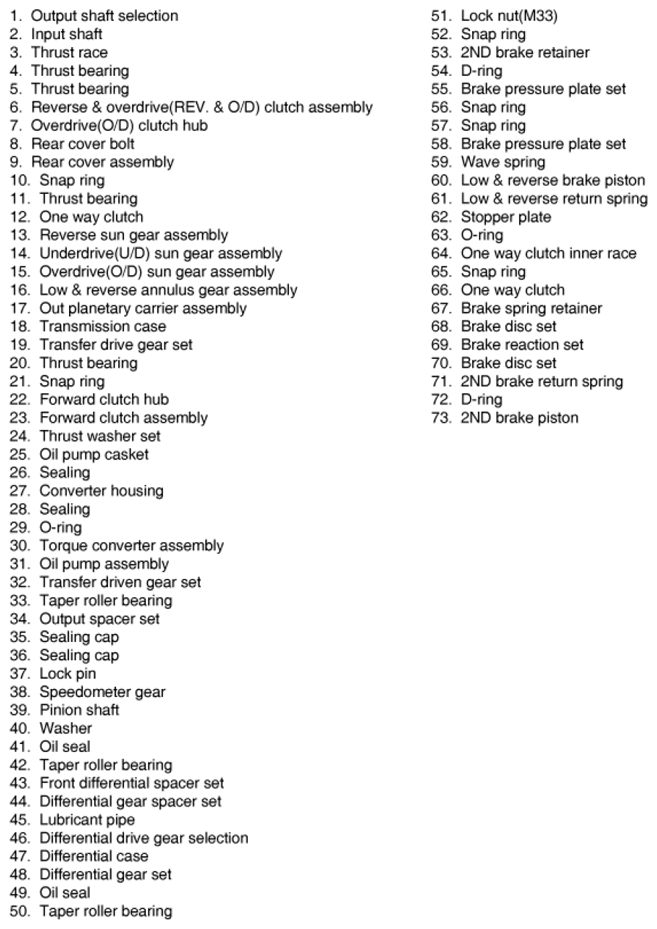

Fig 2: Identifying Automatic Transaxle Components And Components Location (2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.
