Engine Control System Diagnosis (ULEV) (2 Of 2)
>>
DTC P0564: Cruise Control Multi-Function Input A Circuit
>>
General Information
>>
Diagnostic Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Circuit Diagram

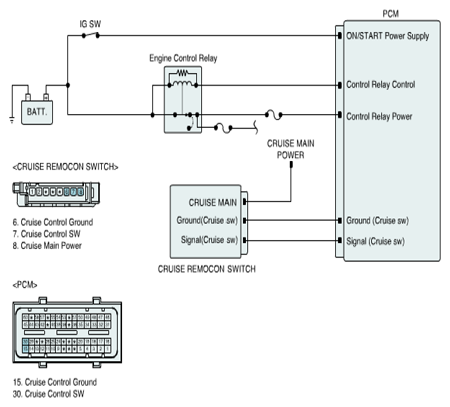

Fig 1: Cruise Remocon Switch Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
