Component Inspection

Measure resistance between power terminal and control terminal of VIS Sol. Valve connector. (Component side)

Specification

TEMPERATURE/RESISTANCE SPECIFICATION

Temp.	VIS Sol. Valve resist
22°C (72°F)	30 ~ 35Ω

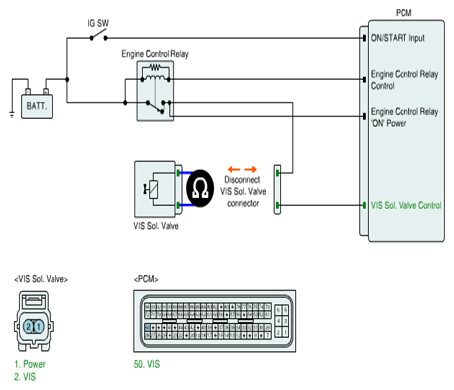

Fig 1: Measuring Resistance Between Power Terminal & Control Terminal Of VIS Sol Valve Connector

Courtesy of KIA MOTORS AMERICA, INC.

Is resistance within specification?
YES
- Check for poor connection between PCM and component: backed out terminal, improper mating, broken locks or poor terminal to wire connection. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Substitute with a known-good component and check for proper operation. If the problem is corrected, replace component and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
