Engine Control System Diagnosis (ULEV) (2 Of 2)
>>
DTC P2017: Intake Manifold Runner Position Sensor/Switch Circuit High (Bank 1)
>>
General Information
>>
Diagnostic Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Circuit Diagram

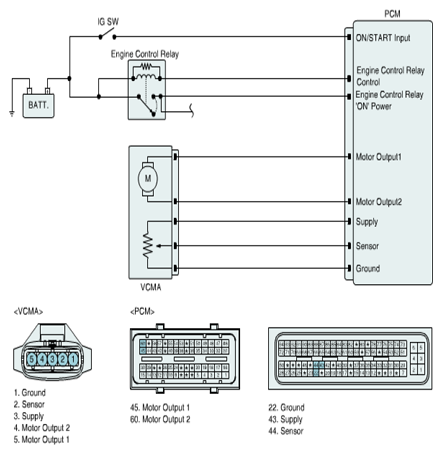

Fig 1: Variable Charge Motion Actuator Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
